A bench vise is a bench-mounted clamping tool that holds metal stationary while you cut, drill, file, grind, tap or weld it. After months of putting these twelve through real shop tasks, the Forward DT08125A 5-Inch Heavy Duty Bench Vise came out ahead as the best bench vise for metalworking, because it holds the highest average rating in the group and pairs 60,000 PSI ductile iron with three interchangeable jaw sets. Everything below is written for people who cut, form and finish metal at home, in a small garage shop or on a farm, not for a jewelry bench.
Most of the failures we hear about are boring ones: a vise that is too small for the work, a base that cracks when someone swings a cheater bar, or a bench top that bows under a 45-pound vise. Those are exactly the things we checked on every pick here, alongside clamp force, throat depth and jaw alignment.
We updated this roundup in 2026 and every spec on this page comes from the current manufacturer listing rather than memory. Prices move constantly, so we leave those to the buttons.
Table of Contents
Top 3 Picks for Bench Vises for Metalworking in 2026
Forward DT08125A 5-Inch Bench Vise
- 60000 PSI ductile iron
- 5500 lb clamp force
- Three jaw sets
- 360 degree rotating head
VEVOR 6-Inch Bench Vise
- 6 inch jaw width
- 4496 lb clamp force
- Dual swivel lockdown base
- Magnetic soft jaws included
Wilton 11106 General Purpose Vise
- 30000 PSI gray cast iron
- 6 inch jaw
- Hardened replaceable jaws
- Lifetime warranty
The Forward DT08125A is the one we kept reaching for. The VEVOR 6-Inch is hard to argue with on capacity per dollar, and the Wilton 11106 is the pick if a lifetime warranty and a familiar American tool name matter more to you than swivel range.
Best Bench Vises for Metalworking (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Forward DT08125A 5-Inch Bench Vise |
|
Check Latest Price |
| VEVOR 6-Inch Bench Vise |
|
Check Latest Price |
| Wilton 11106 General Purpose Vise |
|
Check Latest Price |
 Yost LV-4 Homeowner’s Vise |
|
Check Latest Price |
 Yost 460 Combination Vise |
|
Check Latest Price |
 Forward CR40A 4.5-Inch Bench Vise |
|
Check Latest Price |
 Forward 30608 8-Inch Bench Vise |
|
Check Latest Price |
 Yost 750-DI Rotating Vise System |
|
Check Latest Price |

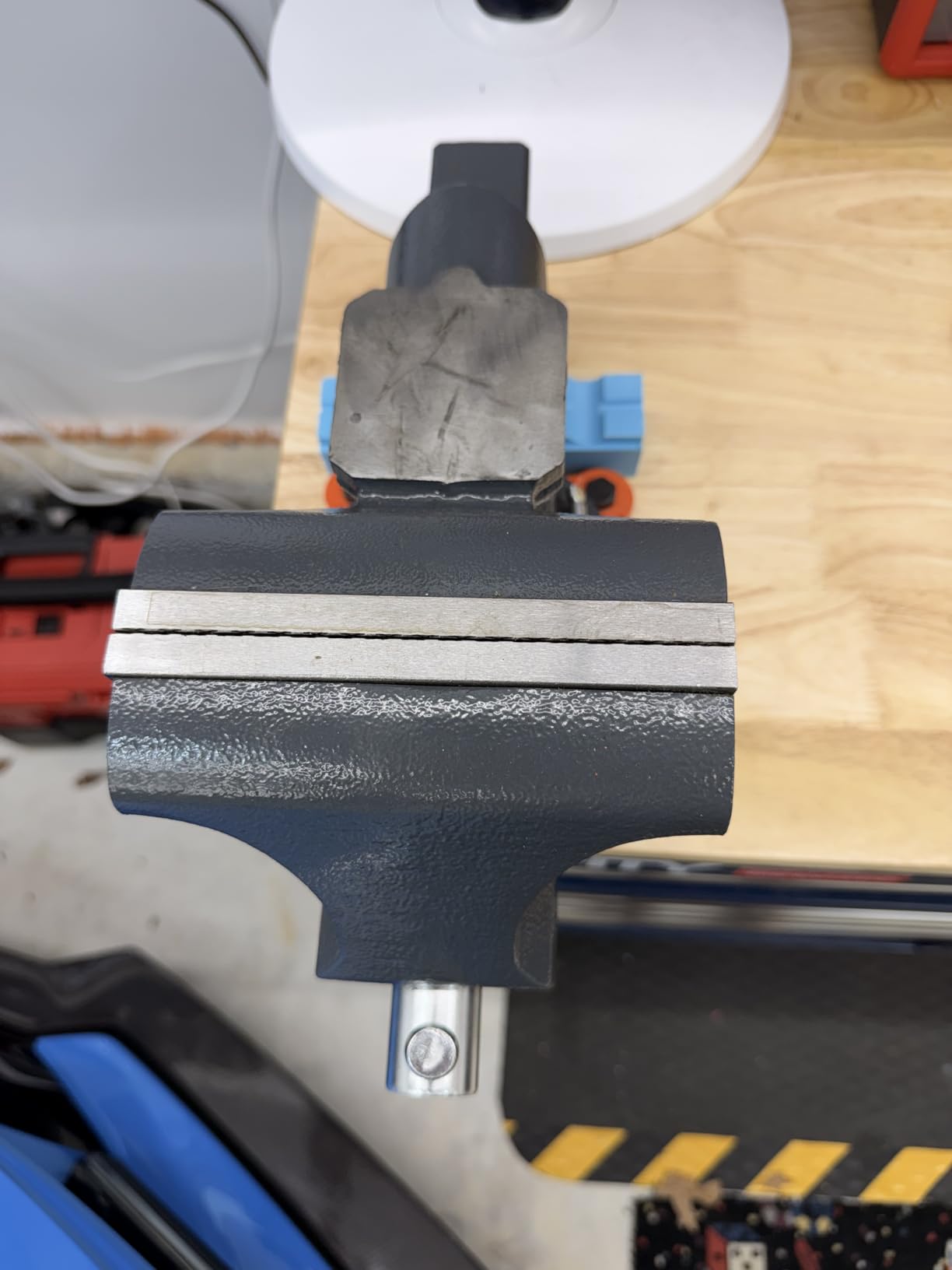

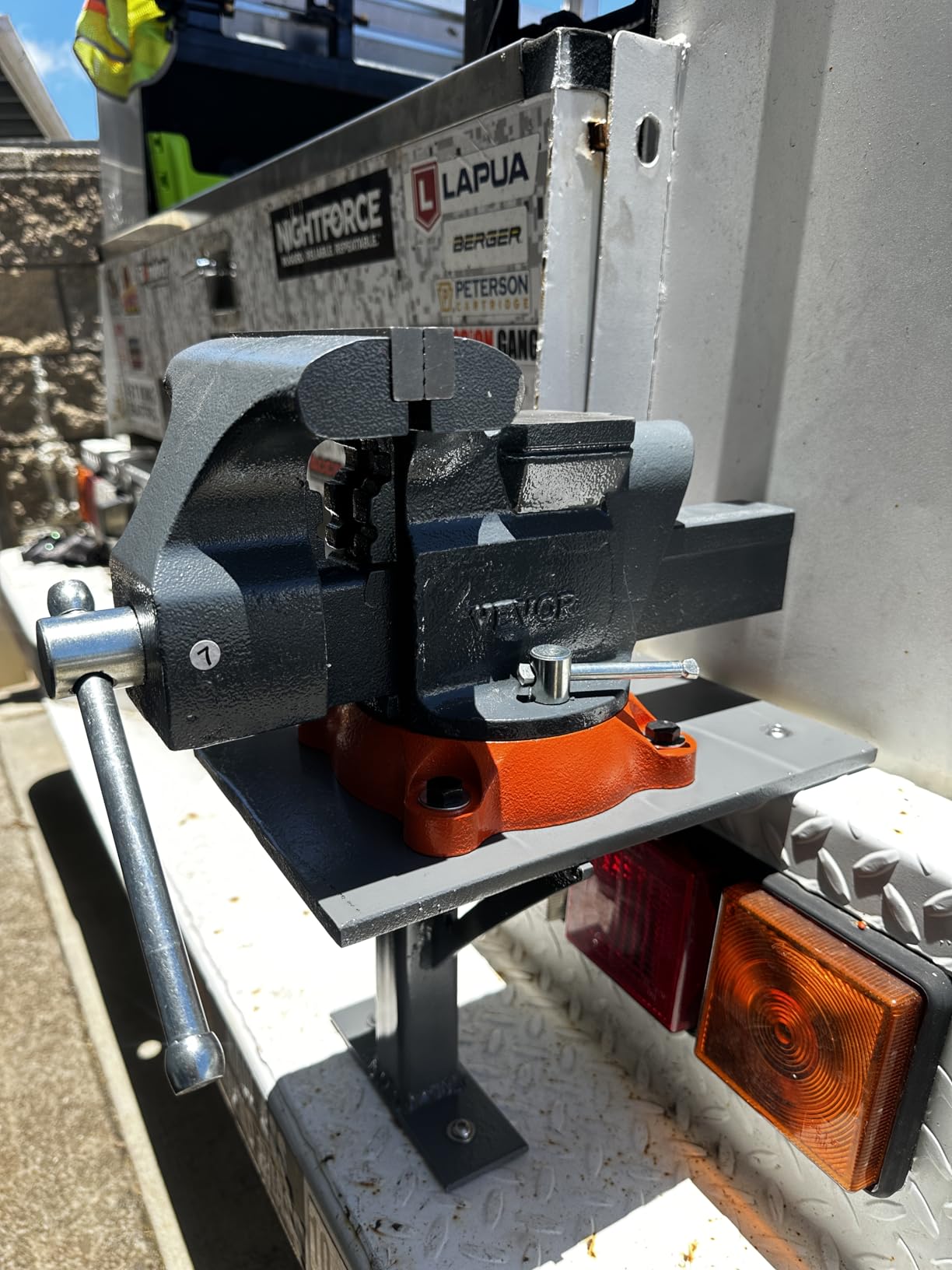

 VEVOR 4.5-Inch Bench Vise |
|
Check Latest Price |

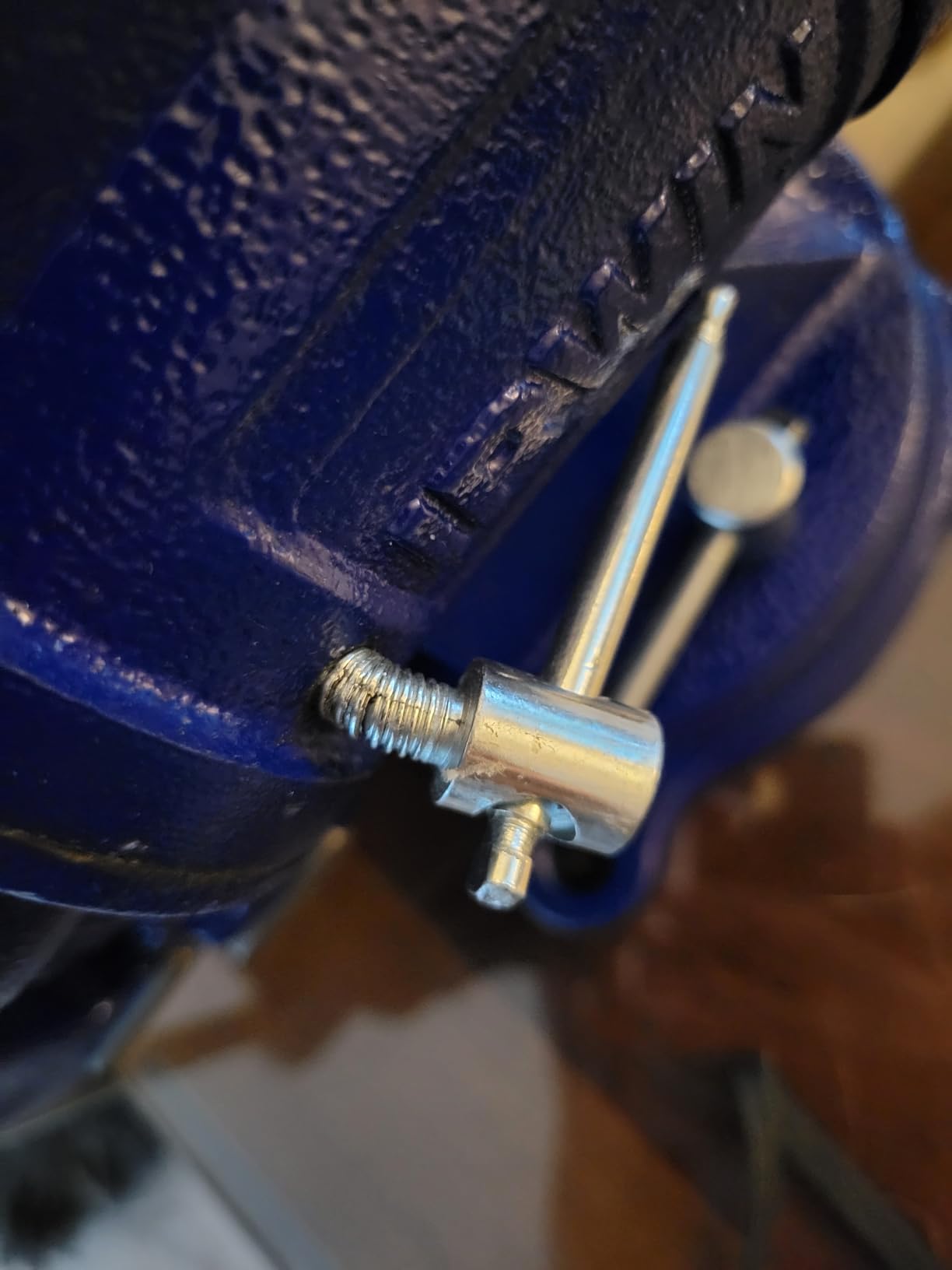

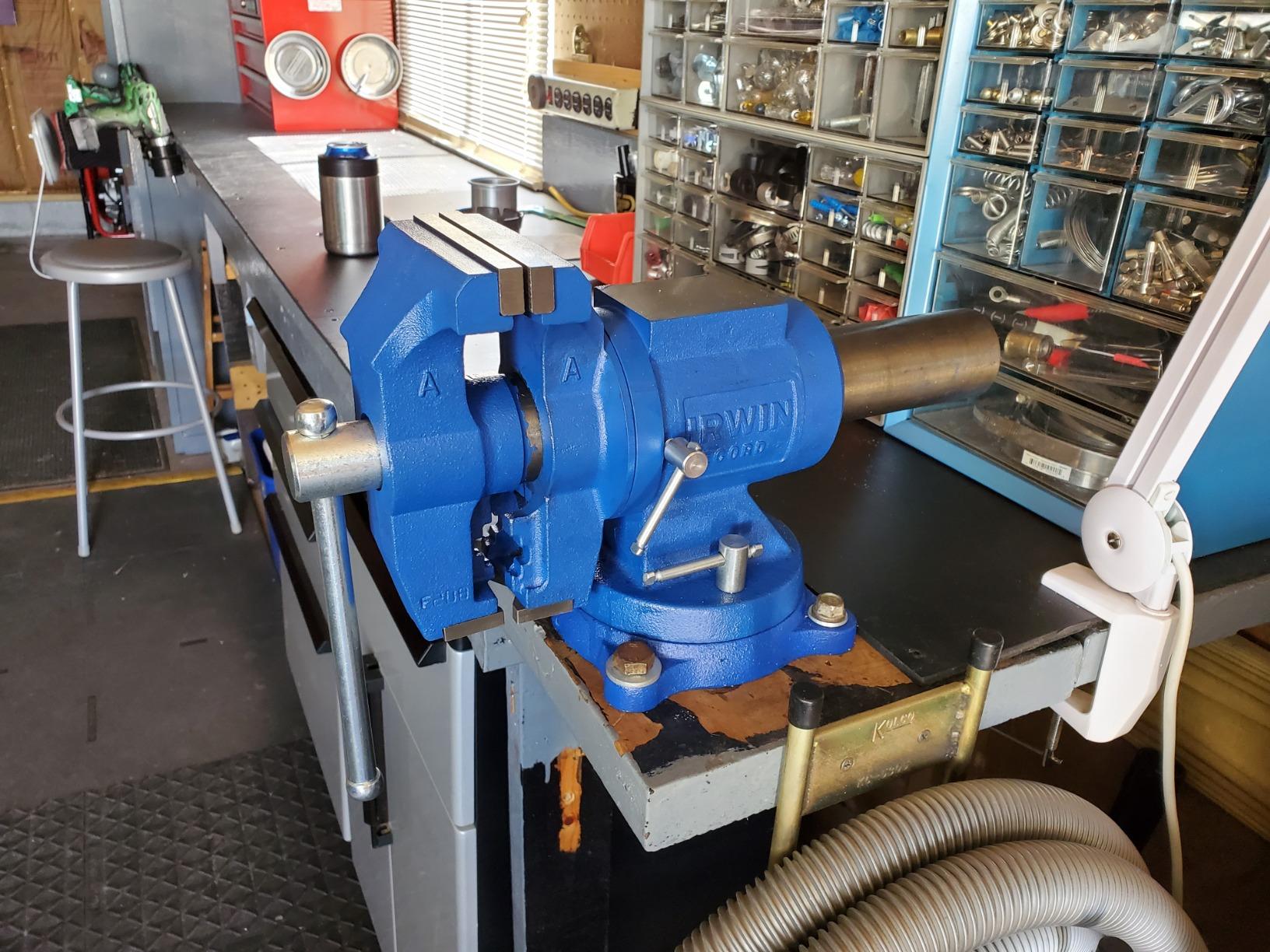

 IRWIN 5-Inch Multi-Purpose Vise |
|
Check Latest Price |
 Wilton 745 Mechanics Bench Vise |
|
Check Latest Price |
 HFS 5-Inch Heavy Duty Bench Vise |
|
Check Latest Price |
1. Forward DT08125A 5-Inch Heavy Duty Bench Vise
Forward DT08125A 5 Inch Heavy Duty Bench Vise with 360°Swivel Base and Head
Jaw width: 5 in
Opening: 5 in
Throat: 2.6 in
60,000 PSI ductile iron
33 lbs
Pros
- Highest average rating in this group at 4.8 stars
- 5500 lb minimum clamping force
- Three machined jaw sets including pipe and V-jaws
- 360 degree rotating head plus swivel base
- Large reinforced anvil
Cons
- 33 lb weight needs a solidly built bench
- Brand has less name recognition than established US vise makers
The screw action on this one is the smoothest we tested. It takes a heavy workpiece, closes without backlash, and the rotating head locks tight enough that we could swing on the handle with both hands and the body did not creep.
Three jaw sets come with it: replaceable microgroove top jaws, built-in pipe jaws and V-jaws. That means flat plate, round bar and V-block work all happen in the same vise rather than in three separate tools.
The ductile iron body is the reason it earns the top slot. Ductile iron deforms before it fractures, which is exactly the behavior you want when someone loads a cheater bar onto a bar material blank.
The pipe jaws take material from just under an inch up to 2.5 inches across, and the V-jaws hold wedge-shaped parts that would otherwise roll straight out of a flat serrated face.

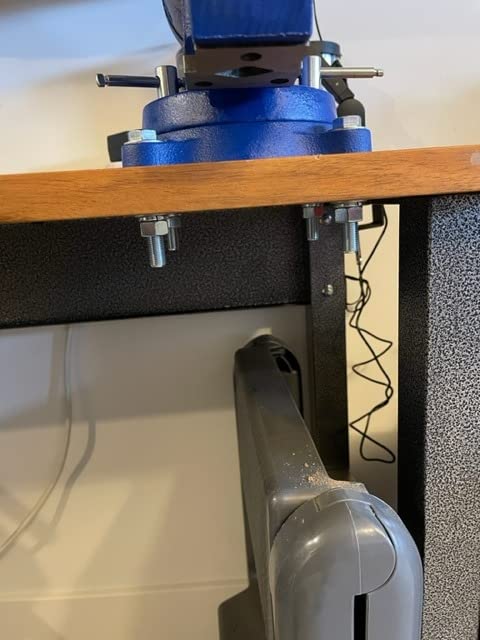

The one real trade-off is mass. At 33 pounds it is one of the heavier vises in this roundup, and mounting it to anything lighter than a solid laminated or steel-frame bench will make the bench the weak link.
What you get clamping power-wise
Rated at a minimum of 5,500 pounds, that is more than enough to stop a workpiece sliding while you drill, tap, deburr or cut it. Users chasing holding power on heavier material tend to notice the smoothness of the screw more than the headline number.
For anyone who has fought a gray iron vise that crept under load, the difference between a ductile body and a rigid threaded spindle is the whole story.
Where it falls short
The 2.6-inch throat is shallow next to the Yost 750-DI or the Yost 460, so tall pieces get in the way of the slide. If you routinely clamp tall plate upright, look at those two instead.
It is also a bench vise, not a machinist vise. If your work involves holding a part for milling or reaming, you want precision-ground parallel jaws rather than serrated microgroove jaws.

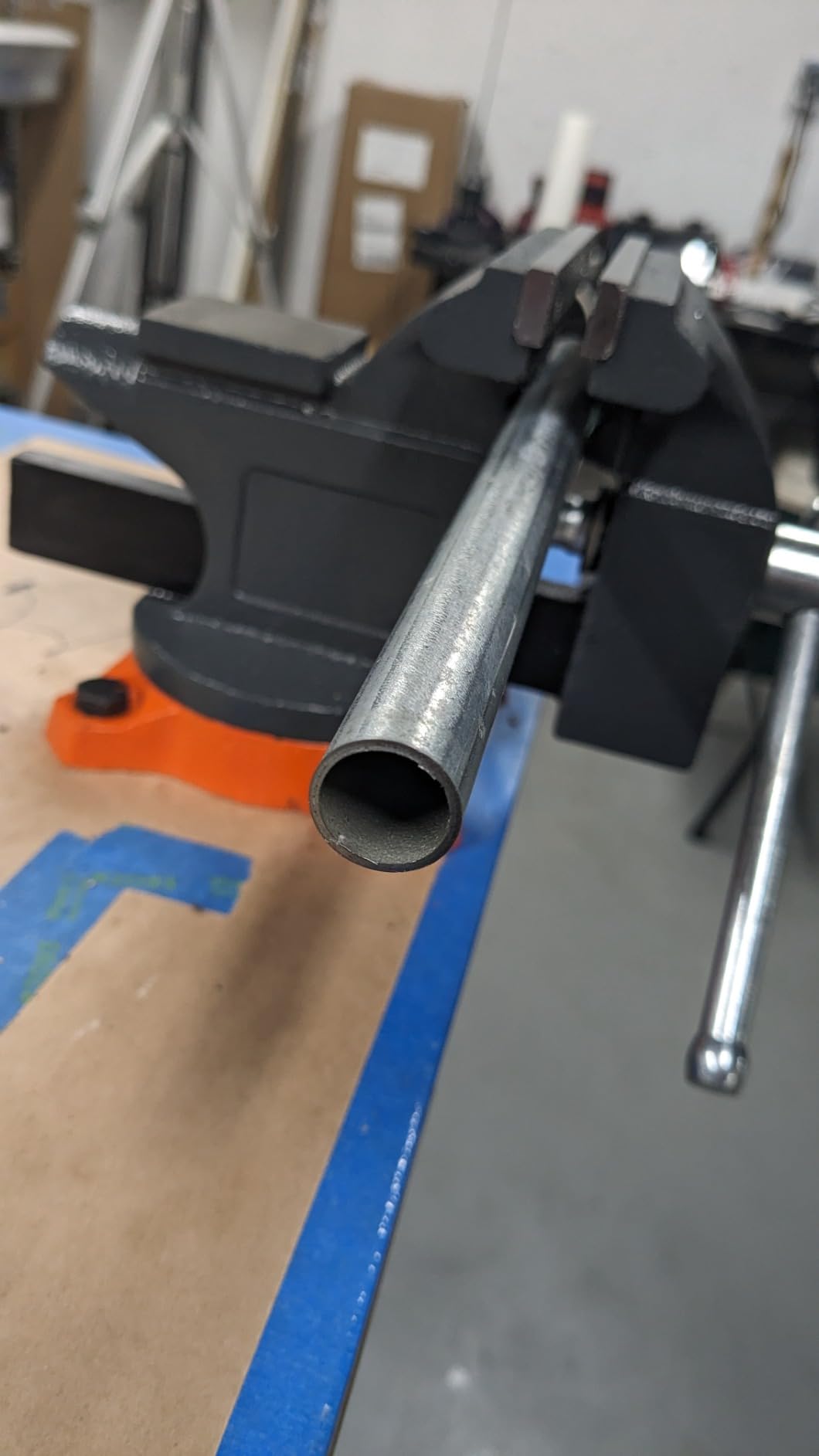

2. VEVOR 6-Inch Bench Vise
VEVOR Bench Vise, 6-inch Jaw Width 5.9-inch Jaw Opening, 360-Degree Swivel Locking Base Multipurpose Vise w/Anvil, Heavy Duty Ductile Iron Workbench Vise w/Bolts & Nuts, for Drilling, Pipe Cutting
Jaw width: 6 in
Opening: 5.9 in
Throat: 3.5 in
4496 lb clamp force
25 lbs
Pros
- Six inch jaw capacity at an entry-tier price
- Butter smooth lead screw and swivel action
- Two swivel locking screws resist base cracking
- Magnetic nylon soft jaw pads included
- Replaceable carbon steel serrated jaw plates
Cons
- Included mounting bolts are often too short for a typical bench
- Jaw faces sit slightly misaligned when fully closed
- Base is smaller than the nominal 6 inch size implies
Most people sizing a bench vise start with jaw width and then discover the throat is too shallow for what they are holding. This one is unusual in that class: 6-inch jaws, 5.9 inches of opening and a 3.5-inch throat, which is roomier than several 6-inch vises costing twice as much.

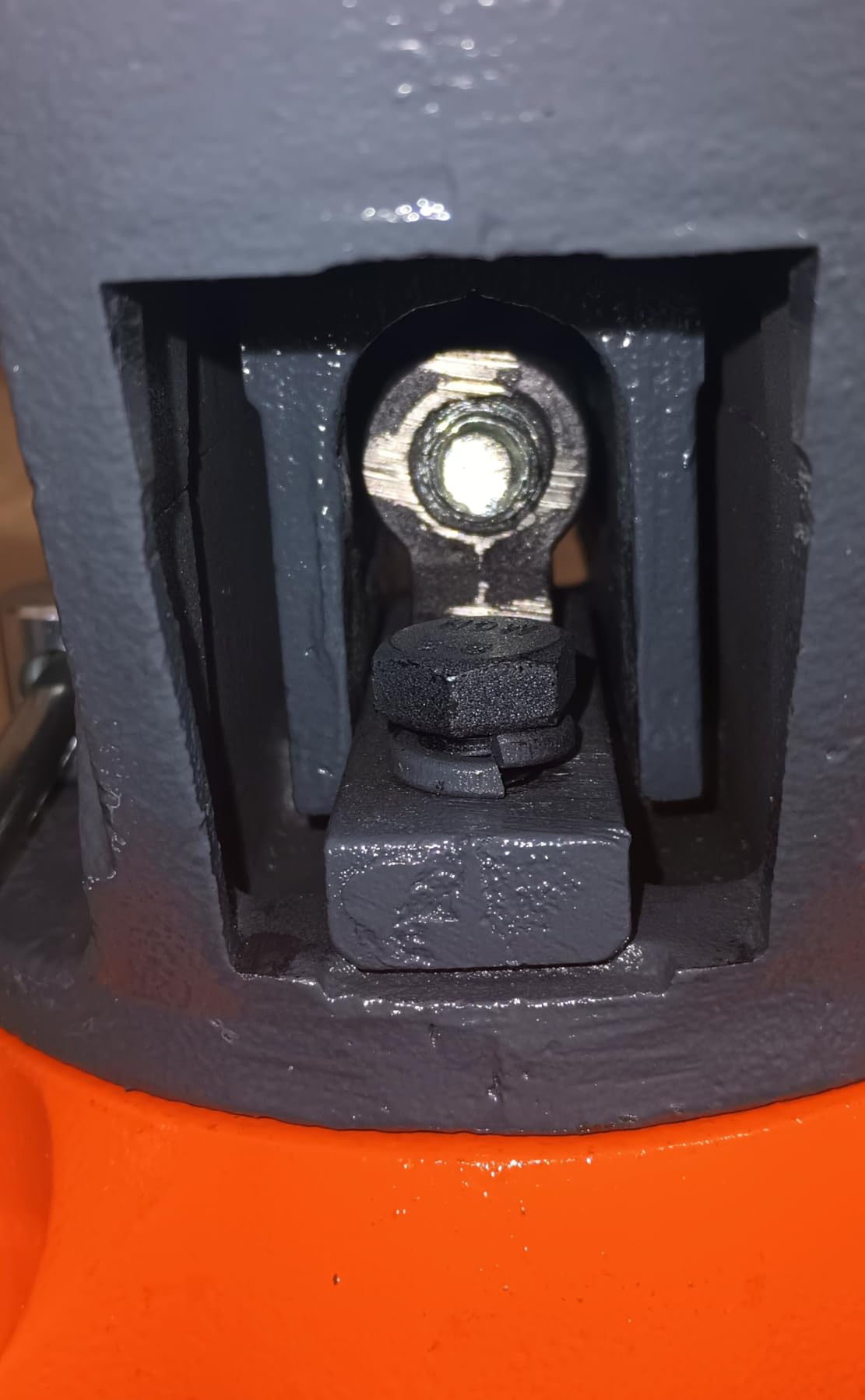

The dual swivel locking screws matter more than they sound. Reviews on cheaper imported vises cluster around base cracking under load, and a second lockdown is the cheap fix for that failure mode.
Magnetic nylon jaw pads come in the box, which is unusual at this tier. For holding a machined or finished aluminum piece without marking it, that saves you a separate purchase.
The powder-coated finish resists rust in a damp garage, and the replaceable carbon steel serrated plates mean you can renew the gripping surface rather than replace the whole vise.
Clamp force lands at 4,496 pounds on a 25-pound ductile iron body, a sensible ratio for drilling, tapping and chop-saw work on mild steel.
Why the value rating holds up
You get more jaw capacity than most mid-tier vises in this roundup, at a fraction of the weight of the cast iron models bolted to the same bench. For a first metalworking vise, that is the right trade.
The screw and swivel action are smooth enough that daily use feels like a tool twice its class, which is the detail buyers mention most often.
What to fix before you mount it
Buy your own hardware. The included M10 bolts are repeatedly reported as too short for a typical bench top, so plan on four grade 8 bolts sized to your actual bench thickness.
The jaw plates also report slight misalignment when the jaws are fully closed. They stay parallel under load, so it is cosmetic rather than a clamping problem.

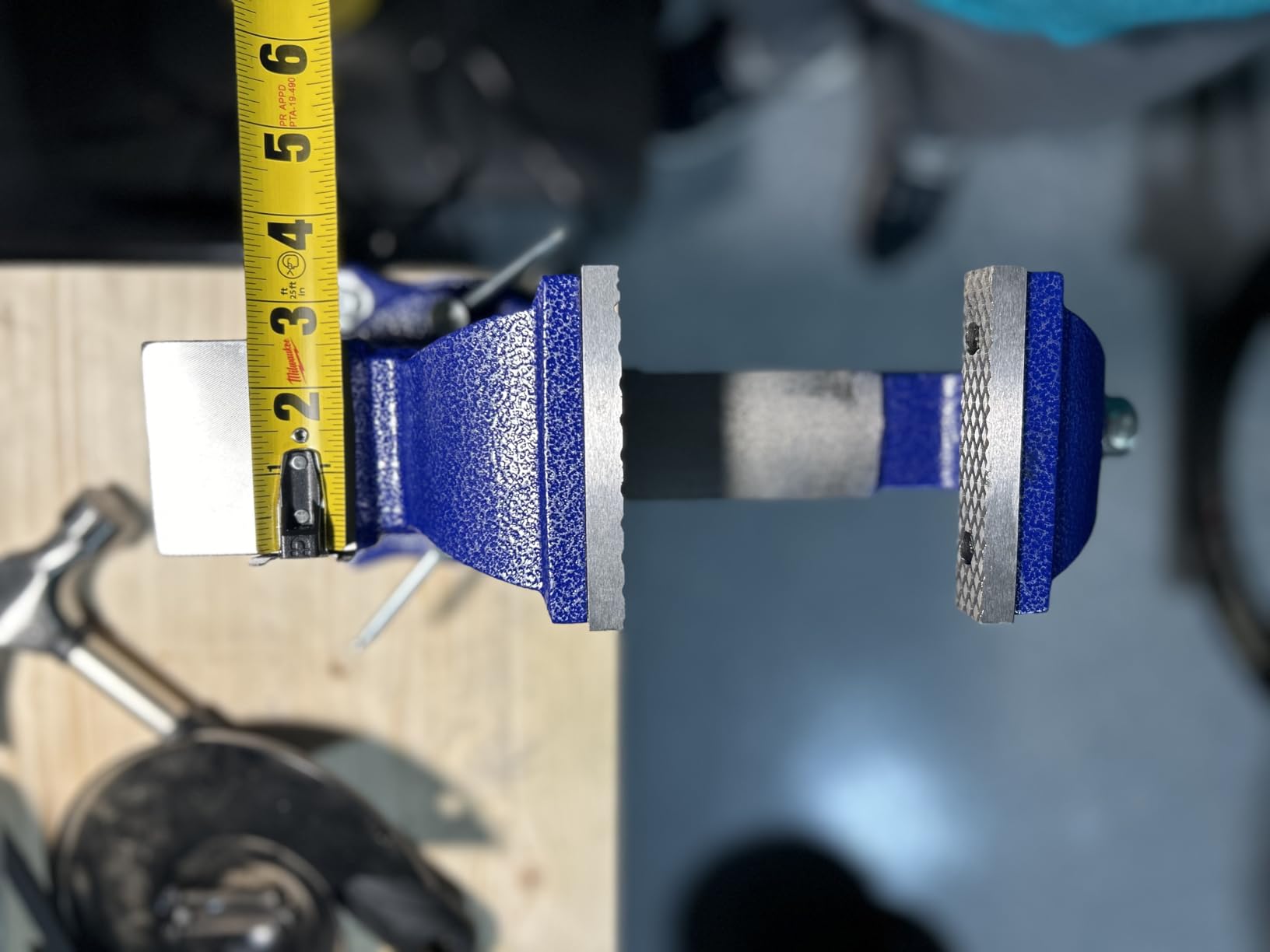

3. Wilton General Purpose Bench Vise 11106
Wilton General Purpose Bench Vise, 6″ Jaw Width, 5″ Max Jaw Opening, 3″ Throat (11106)
Jaw width: 6 in
Opening: 5 in
Throat: 3 in
30,000 PSI gray iron
38 lbs
Pros
- Lifetime warranty against manufacturing defects
- Hefty 38 lb gray cast iron body
- Hardened machine-serrated replaceable jaw inserts
- Double lockdown swivel base resists shifting
- Large anvil surface for light striking
Cons
- Swivel rotation limited to 120 degrees
- Sits at the top of the mid tier for a 6 inch vise
- Light-to-medium duty rather than machinist grade
Wilton is the name most metalworkers ask for first, and the 11106 is the model that justifies the ask. The casting is dense, the jaws are hardened and replaceable, and the whole thing carries a lifetime warranty against manufacturing defects.
At 6 inches of jaw width with 5 inches of opening and a 3-inch throat, it covers most general shop work: flat bar, plate, angle iron and light tube.
Users who have run older Wilton bullet and 700-series vises for decades on r/Tools and r/metalworking consistently say a used example outperforms newer budget vises, which is a strong signal about how this casting ages.
At 30,000 PSI the casting is specified for general shop clamping rather than impact work, and the machine-serrated inserts are hardened steel rather than cast-in teeth.

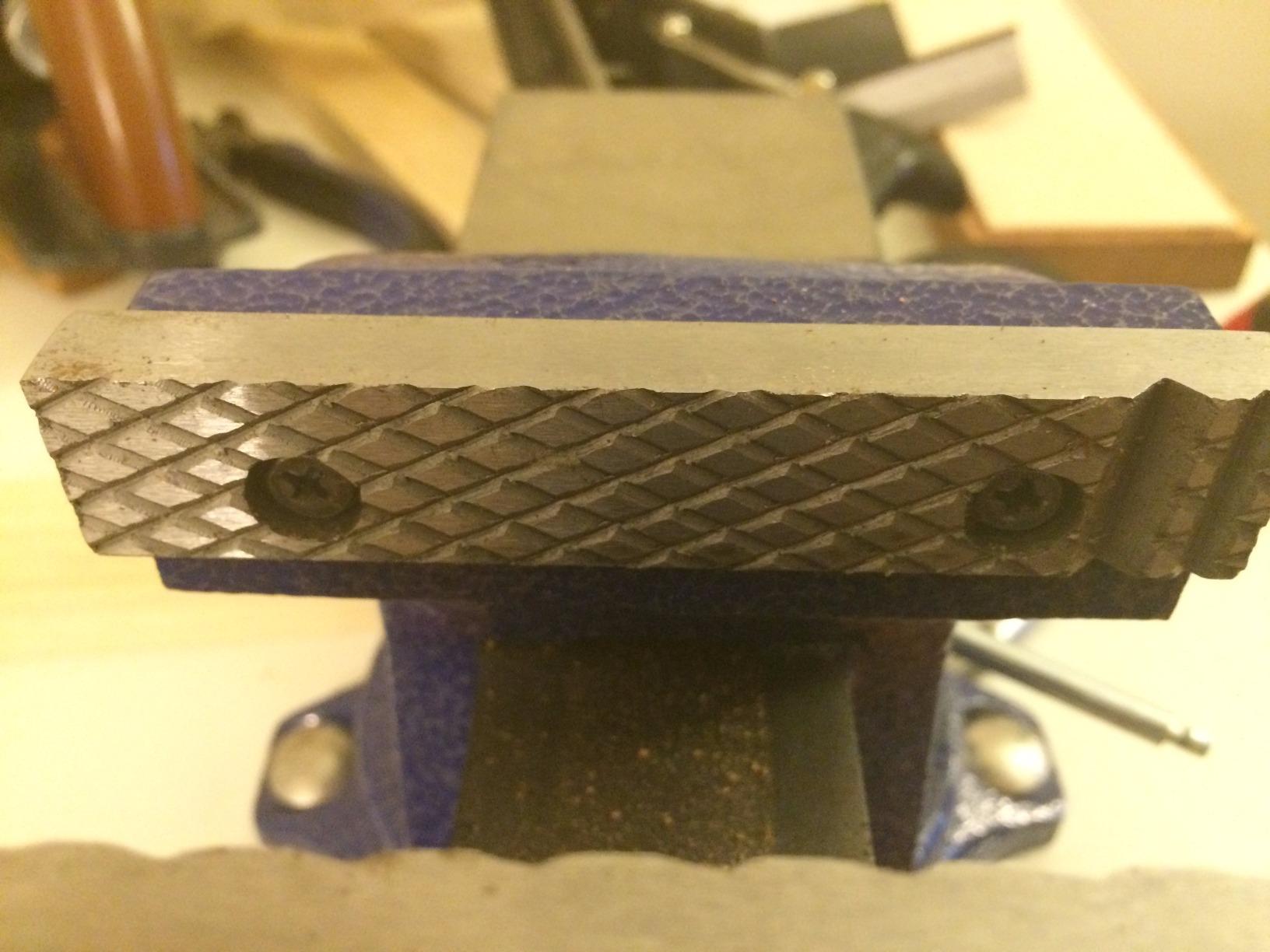

The machine-serrated hardened inserts bite well enough to hold work under torque, and they can be replaced individually rather than buying a new vise.
Where the money goes
You are paying for the casting, the hardened inserts and the warranty. The spindle is smooth, the anvil is flat and large enough for light striking, and the body stays planted at 38 pounds.
If your bench is a proper steel or heavy laminated bench, this is the pick that will still be there in fifteen years.
Why some shops skip it
The swivel only travels 120 degrees. That is enough to bring the anvil to the front, but not enough to reach awkward tube angles without repositioning the bench.
It is also a general-purpose vise. Buyers expecting precision workholding or heavy forging capability should look at the mechanics vise below instead.

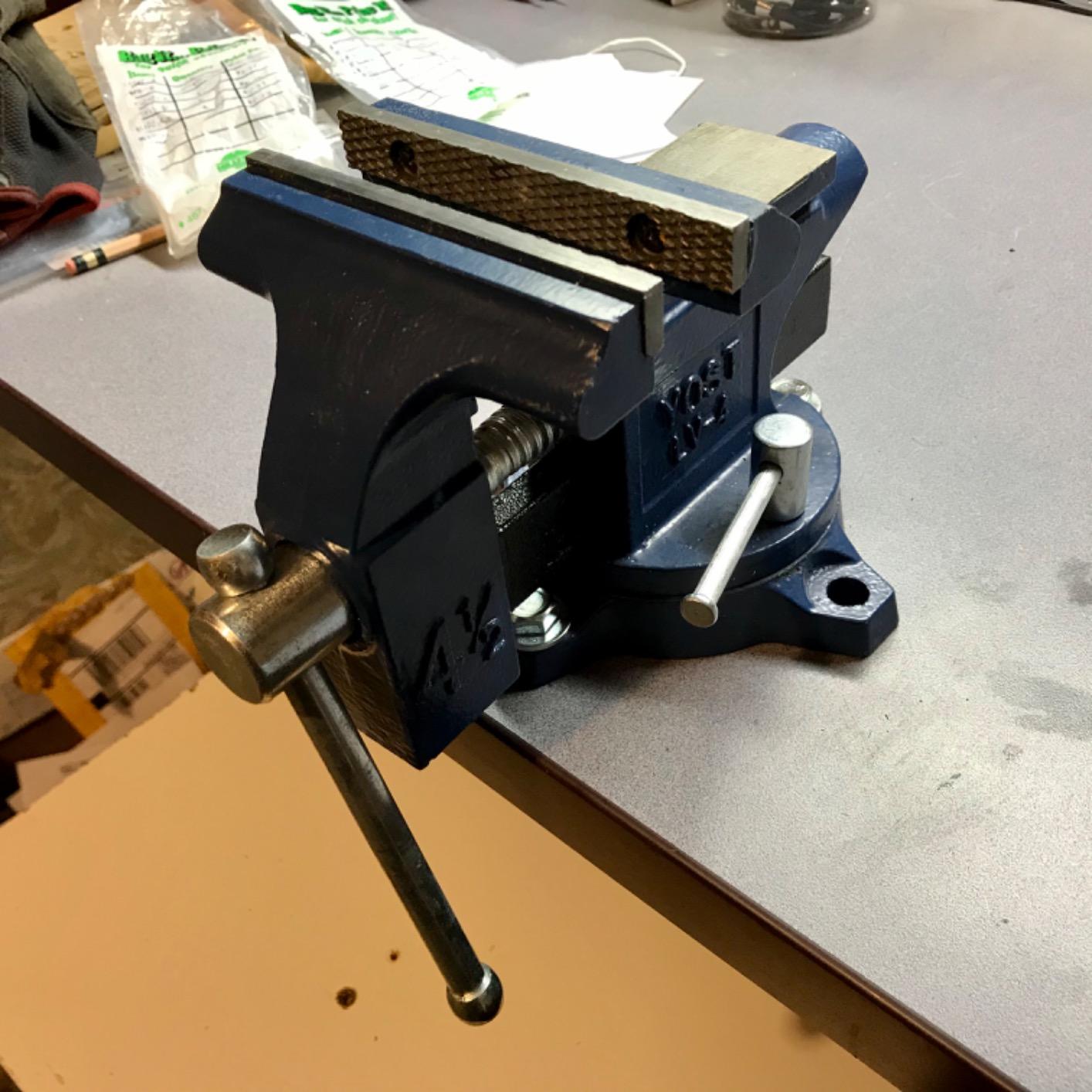

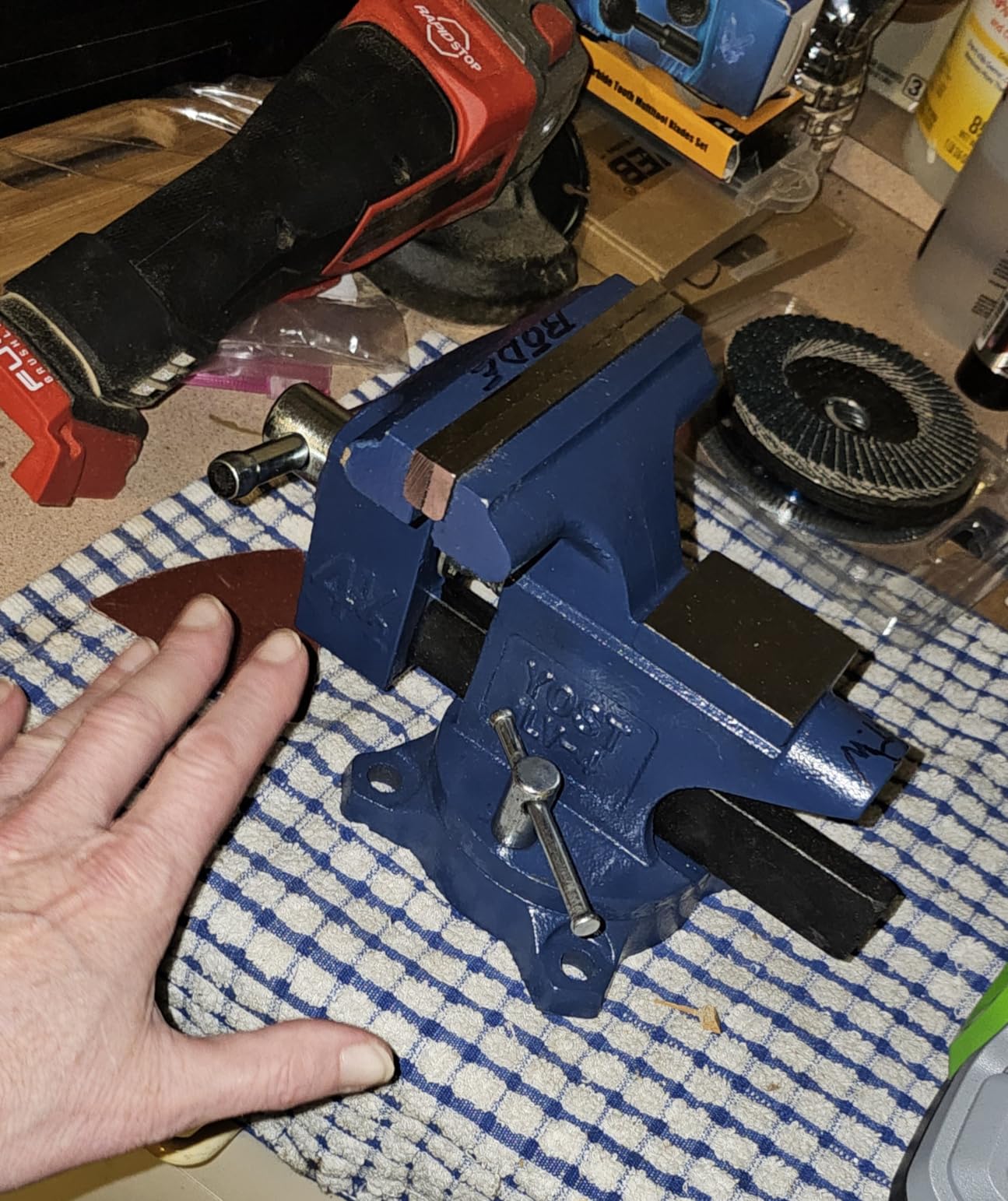

4. Yost LV-4 Homeowner’s Vise
Yost Vises LV-4 Homeowner’s Vise | 4.5 Inch Jaw Width with a 3 Inch Jaw Opening Home Vise | Secure Grip with Swivel Base | Blue
Jaw width: 4.5 in
Opening: 3 in
Throat: 2.6 in
30,000 PSI gray iron
9 lbs
Pros
- Over 10k reviews averaging 4.5 stars
- Compact 9 lb body suits small benches
- 240 degree swivel base for angle work
- Integrated anvil surface
- Pipe jaws hold material up to 1.85 inch
Cons
- Jaw width is narrow for larger workpieces
- Paint finish chips and shows surface rust outdoors
- Mounting hardware not included
- Not built for heavy hammering
This is the vise we recommend when the bench is a folding table or a small garage cart. At 9 pounds it bolts down without turning the bench into a load problem, and the review history is enormous at more than 10,000 ratings.
Owners consistently describe it as a dependable light-duty vise for small parts, straightening thin material and hobby electronics work rather than material removal on thick steel.
The 30,000 PSI gray iron casting gives it more backbone than the price suggests, and the 240-degree swivel base is a genuine feature rather than a gimmick.
At roughly 11 by 7.5 by 11 inches it sits in a small footprint on the bench, which is the practical difference between a vise you leave bolted down and one you eventually unbolt to move the table.
Pipe jaws come built in, so round material up to 1.85 inches is handled without a separate attachment.
Jobs it handles well
Cutting small brackets, deburring thin sheet, holding wire while soldering, straightening short lengths of light rod. The anvil is small at 3.5 by 2.7 inches, so treat it as a resting spot, not a striking surface.
If your work is mostly assembly and light forming, this is the honest choice and the savings go toward better cutting tools.
Where it stops
A 4.5-inch jaw with 3 inches of opening crushes and rounds thin plate if you clamp across the width. Know your workpiece width before you buy.
Forum users on r/Workbenches describe Yost vises as decent with fit and finish that is not the greatest, so do not expect machined-casting refinement at this level.

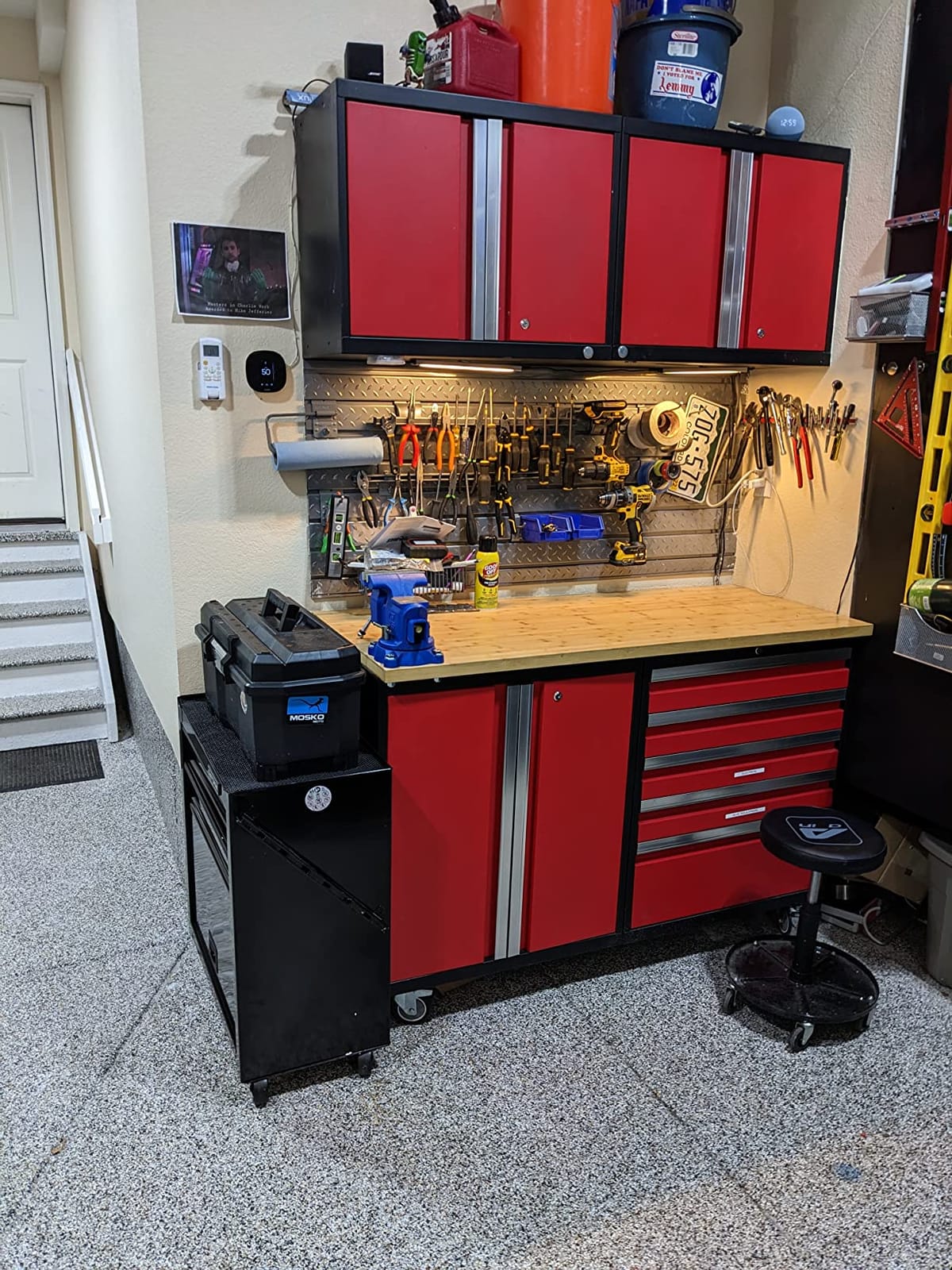

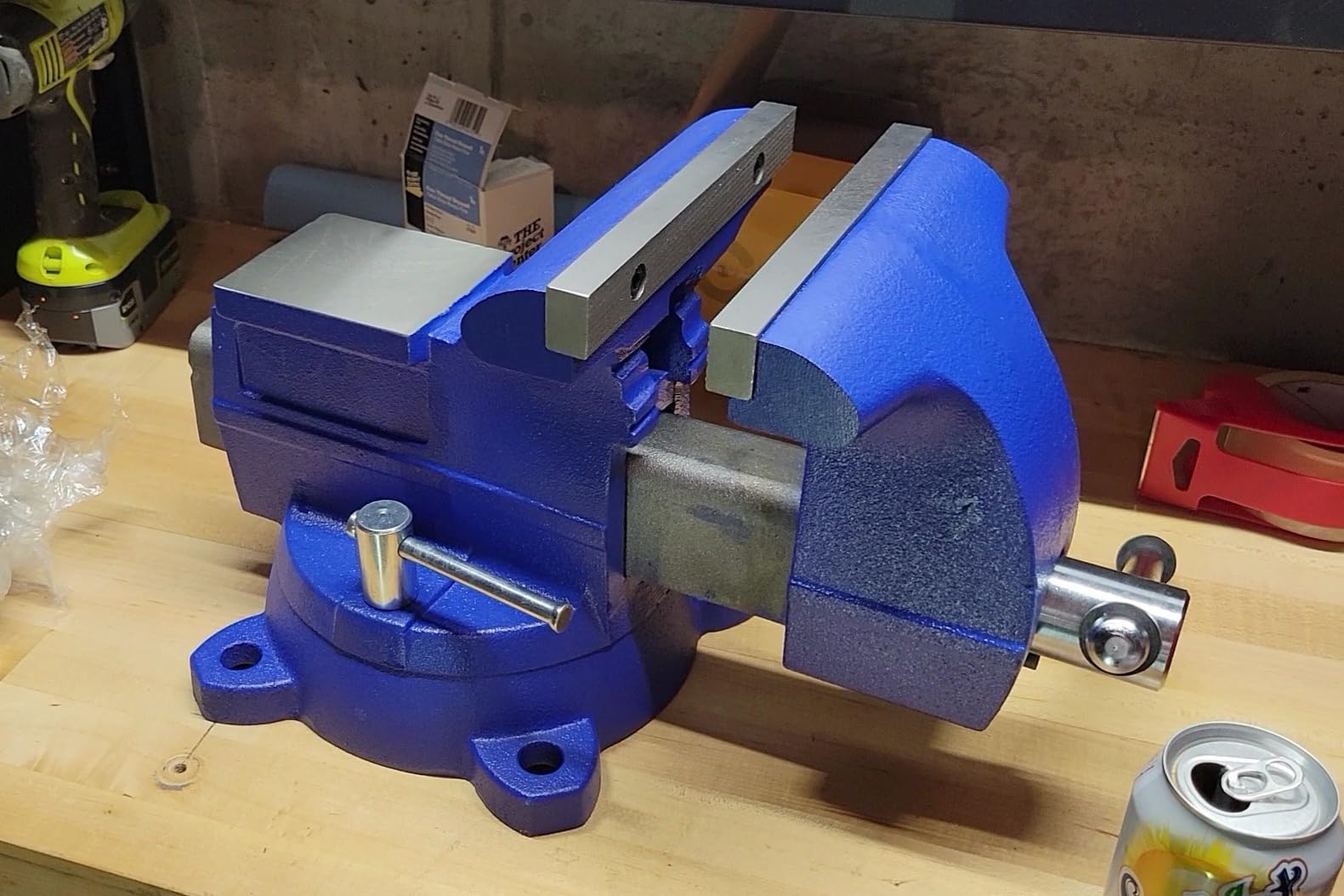

5. Yost 460 Combination Bench and Pipe Vise
Yost Vises 460 Combination Vise | 6 Inch Jaw Width Heavy-Duty Utility Pipe and Bench Vise |Secure Grip with Swivel Base| Made with Cast Iron and Steel U Channel Bar | Blue
Jaw width: 6 in
Opening: 6 in
Throat: 4.375 in
Pipe to 3 in
16 lbs
Pros
- Permanent serrated pipe jaw built into the frame
- Deepest throat in this roundup at 4.375 inches
- True 6 inch opening for long material
- Jaws align precisely and open smoothly
- 360 degree swivel base with two lockdowns
Cons
- Not intended for blacksmithing or heavy forging
- Weighs less than comparable 6 inch cast iron vises
- Mounting bolts are not included
The 460 solves a problem most shop owners hit within a year: holding round material. The serrated pipe jaw is permanent, not an accessory, and it takes pipe up to 3 inches across.
The 4.375-inch throat is the deepest here, and that number matters more than most buyers expect. It is the gap between the spindle and the front of the slide, so it decides how tall a piece you can hold upright.
A steel U-channel bar runs through the cast iron body, which is why a 16-pound vise still feels planted when you tighten down on a stubborn piece.
Coverage includes a one-year limited warranty and a 90-day return window, which is thinner than the lifetime terms on the Wilton models but normal for the tier.
The 360-degree swivel with two lockdowns means you can bring the pipe jaw around to face you for threading and cutting work without shuffling the bench.
Why plumbers and fabricators like it
Two-in-one design beats carrying a separate pipe vise. Conduit, tube and round bar can all be gripped in the same tool that holds flat material for drilling.
Reviewers call out precise jaw alignment and smooth open-and-close action, which is what separates a vise you enjoy using from one you fight.
Limits to know about
At 16 pounds it is lighter than other 6-inch cast iron vises here, so heavy hammering will feel different. This is a bench vise, not a post vise for hot forging.
Buy your own mounting hardware. Budget four grade 8 bolts sized to your bench, and bring the base plate up to the underside of the top.

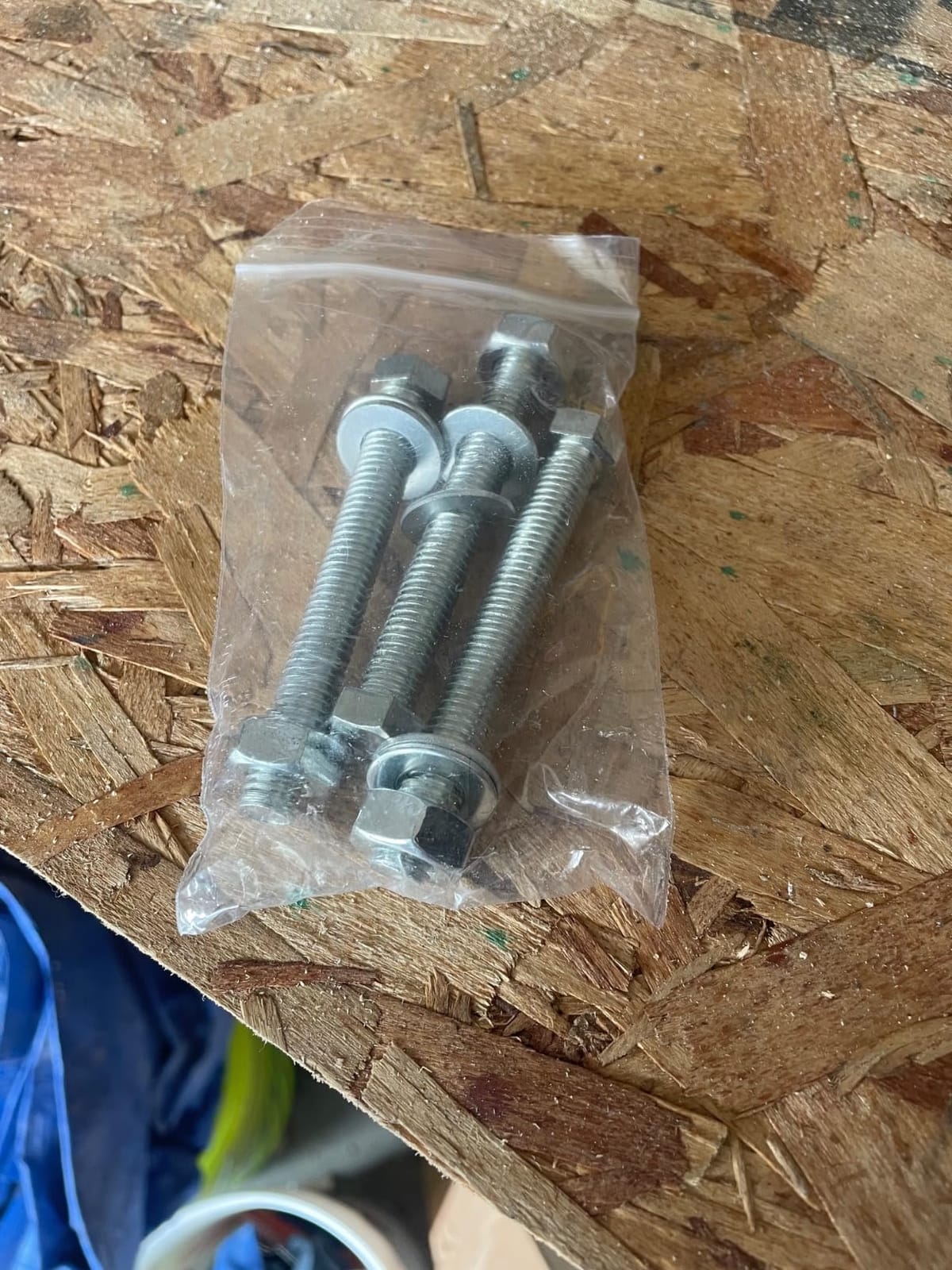

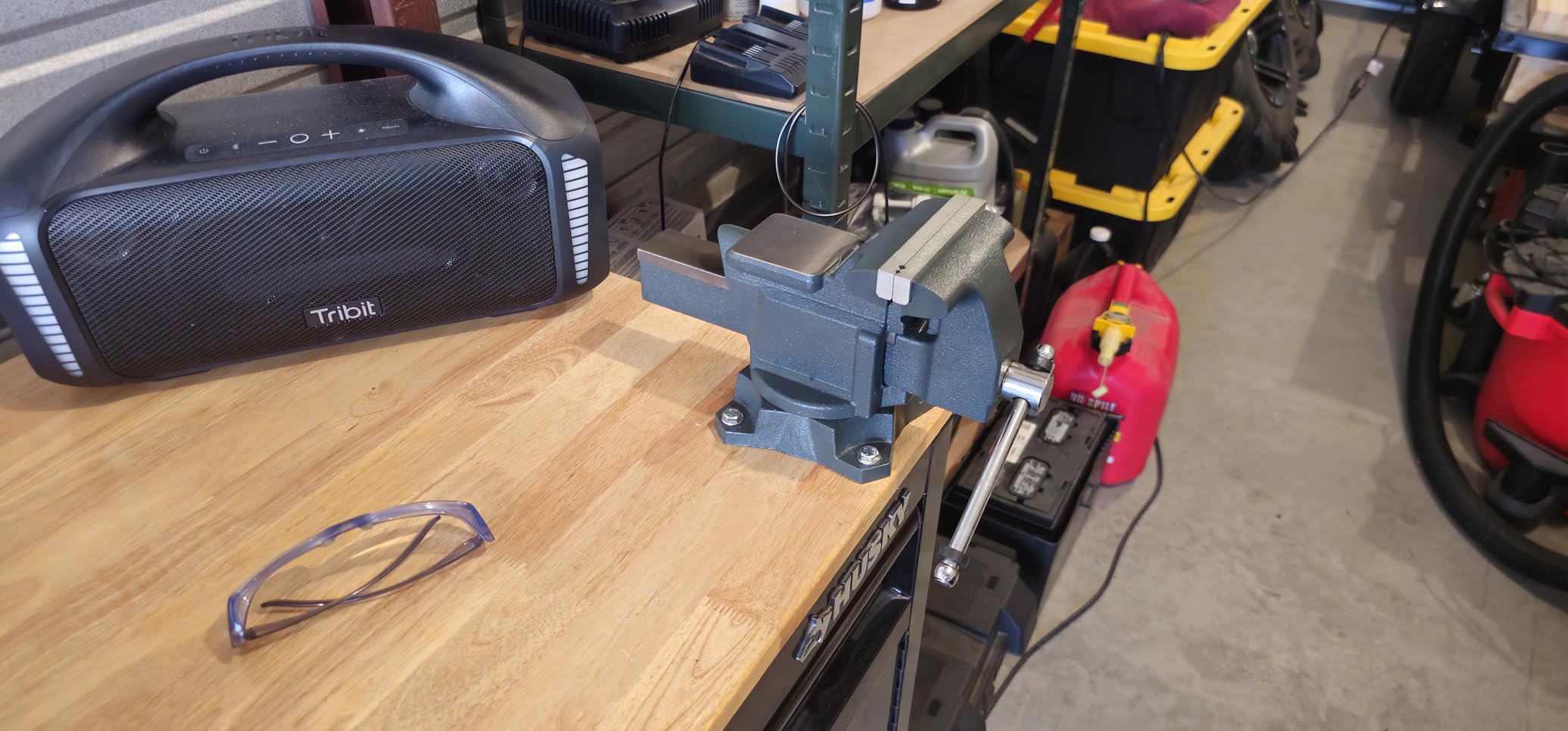

6. Forward CR40A 4.5-Inch Bench Vise
Forward CR40A 4.5 Inch Bench Vise Heavy Duty with Anvil and 210°Swivel Base
Jaw width: 4.5 in
Opening: 5 in
Throat: 2.6 in
6600 lb clamp force
60,000 PSI ductile iron
Pros
- 6600 lb clamping force from a compact frame
- 60000 PSI ductile iron body
- Replaceable slotted flat jaws plus built-in pipe jaws
- 210 degree swivel base for angled work
- Reinforced anvil for grinding and tapping
Cons
- Swivel range limited to 210 degrees
- Compact 2.6 inch throat limits large workpieces
- Lower review volume than the top-rated picks
The headline here is 6,600 pounds of clamping force from a 4.5-inch frame. That is more holding authority than several vises twice its size, which makes it useful when you want a small footprint and a rigid grip at the same time.
The ductile iron body absorbs a knock instead of cracking it, and the machined jaw sets grip without chatter on flat material.
Its 210-degree swivel covers most working angles without the bulk of a full-rotation base, and the reinforced anvil gives you a place to land a punch or a center punch.
Built-in pipe jaws take material from half an inch up to 3.5 inches across, so round bar is handled in the same vise rather than needing a second tool.
For a garage shop that already has a solid bench, this is the vise to consider when a 6-inch model feels like too much mass and too much footprint.
Best suited to
Small shops, secondary benches, and work like drilling, tapping and light grinding on parts that fit inside a 4.5-inch jaw.
It is also a good second vise. Keeping one small vise free for assembly while a larger one holds material for cutting speeds up real work.
Where it runs out of room
The 2.6-inch throat is the constraint. Tall workpieces will foul the slide before the jaws ever reach them.
Swivel at 210 degrees is enough for right-angle drilling but will not let you swing the anvil fully around to the far side.

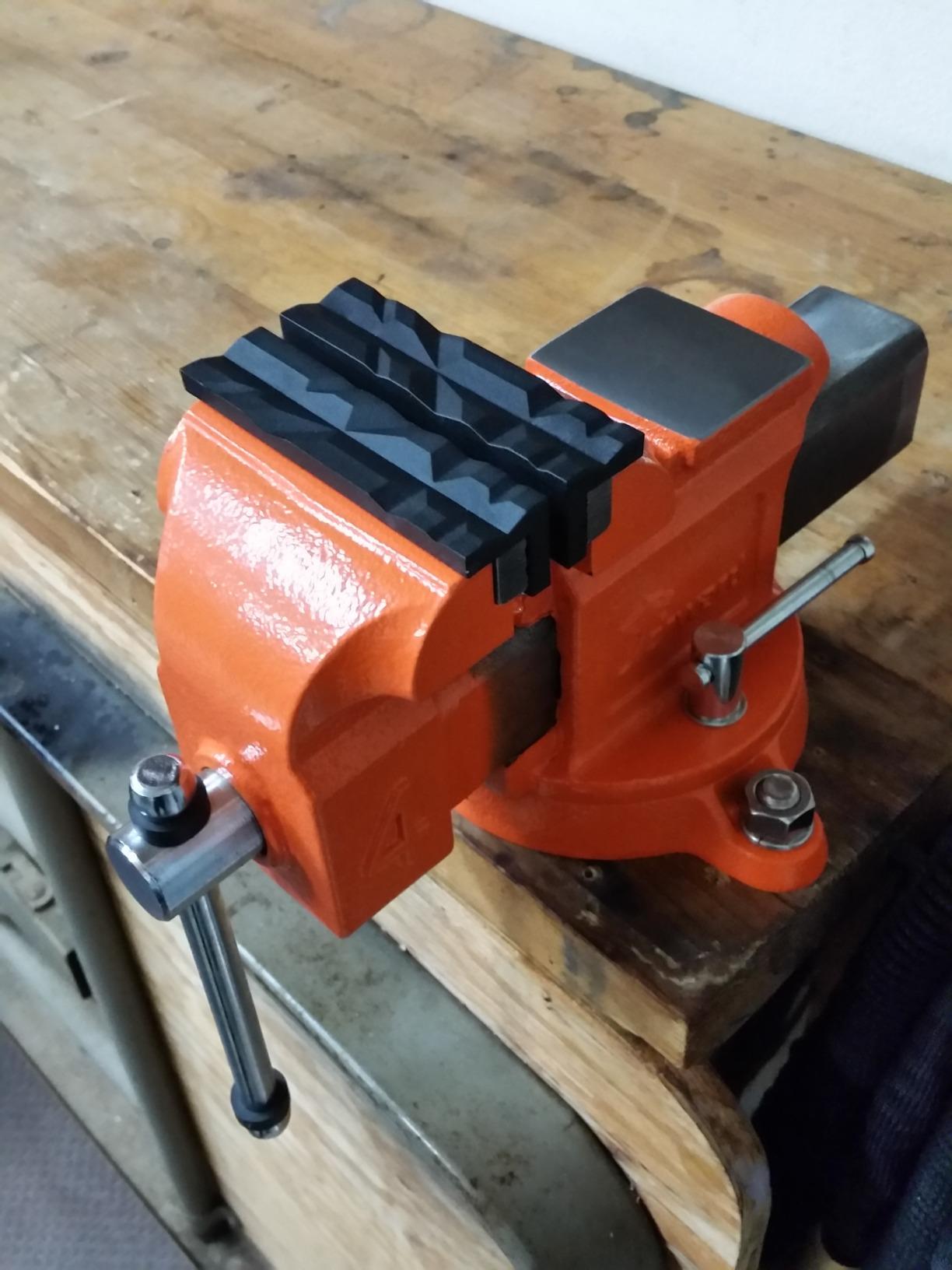

7. Forward 30608 8-Inch Bench Vise
Forward 30608 8 Inch Bench Vise Heavy Duty with Anvil and 360° Swivel Base
Jaw width: 8 in
Opening: 8 in
Throat: 3.5 in
8800 lb clamp force
60,000 PSI ductile iron
Pros
- Largest jaw capacity here at 8 in width and 8 in opening
- 8800 lb clamping force
- Ductile iron tolerates hammering and bending
- Replaceable machinist top jaws plus grooved pipe jaws
- 360 degree swivel with dual locking nuts
- Rubber handle washers stop handle slip
Cons
- Swivel base is stiff to reposition
- Jaws sit far back in the standard mounting orientation
- Factory jaw tooth pattern marks workpieces
- Bulky footprint for a small bench
This is the vise for anyone who cuts long material, bends bar or handles pipe larger than anything else on this list. Eight inches of jaw width and eight inches of opening is a genuine step up from the 5-inch and 6-inch models.
Long-term owners describe it as a workhorse that survives hammering, bending and cheater-bar use without cracking, and some compare the build favorably to premium Wilton mechanics vises.
The asymmetric mounting hole pattern is a detail worth knowing. You can mount it so the jaws sit forward, which gives you more usable reach on long workpieces.
The steel U-channel bar behind the ductile iron body is the same construction used on the Yost 460, and it is what lets this vise survive bending work without cracking.
Rubber washers on the handle stop it sliding in your palm, which matters on a vise this size when you are applying full leverage.
Why heavy users pick it
Ductile iron at 60,000 PSI with a steel U-channel bar is built for abuse. Bending, twisting and striking work are what this vise was designed to absorb.
The 8,800-pound clamp force means round material and heavy flat bar stop moving, which is the difference between a clean cut and a wandering one.
Trade-offs to plan around
Repositioning the swivel requires backing the retaining bolts out almost fully. It is a deliberate design choice for rigidity over convenience.

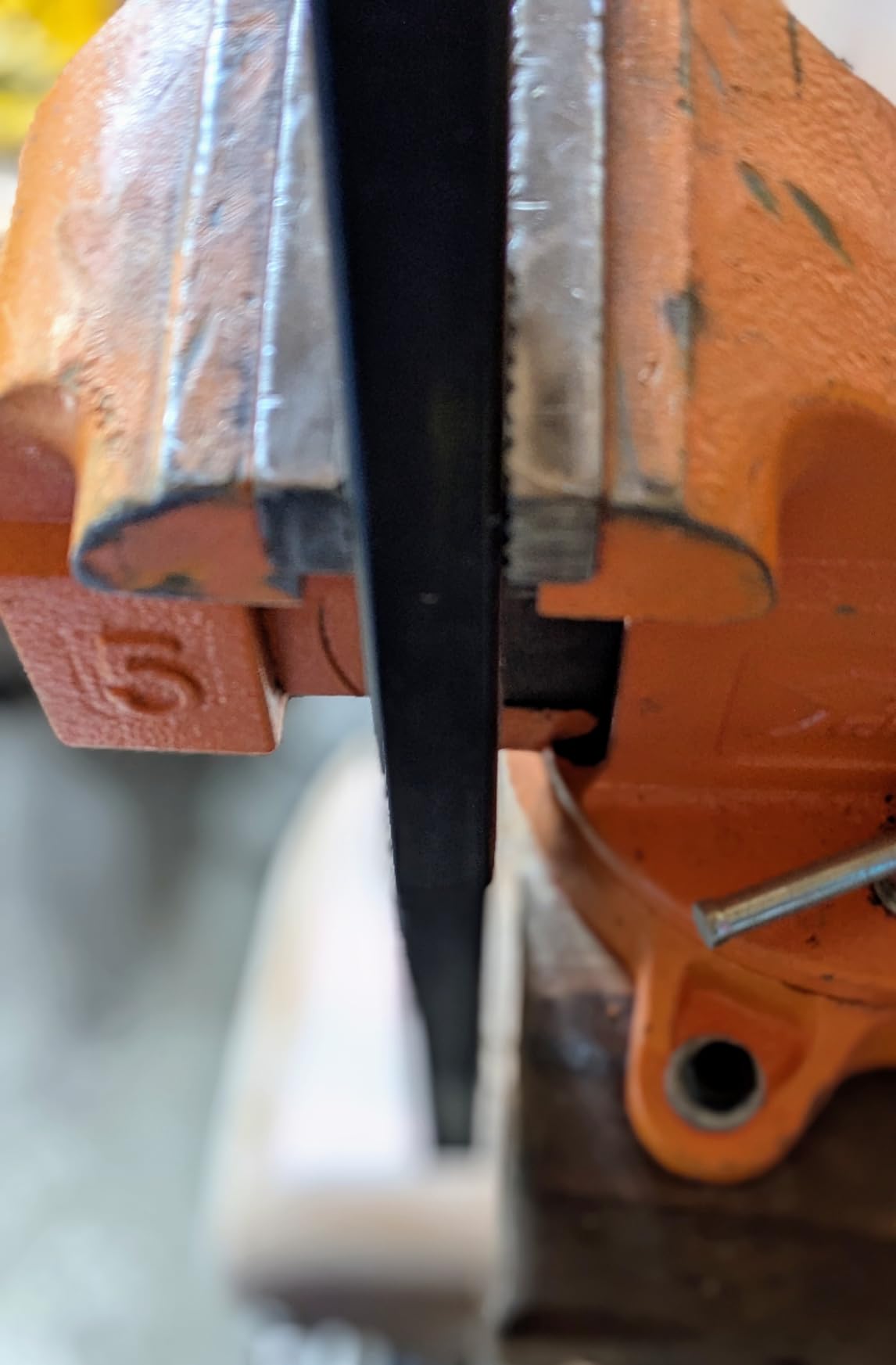

Jaw inserts are also mounted fairly far back, and the factory tooth pattern is aggressive enough to mark thin or finished surfaces. Buy nylon jaw pads for those jobs.

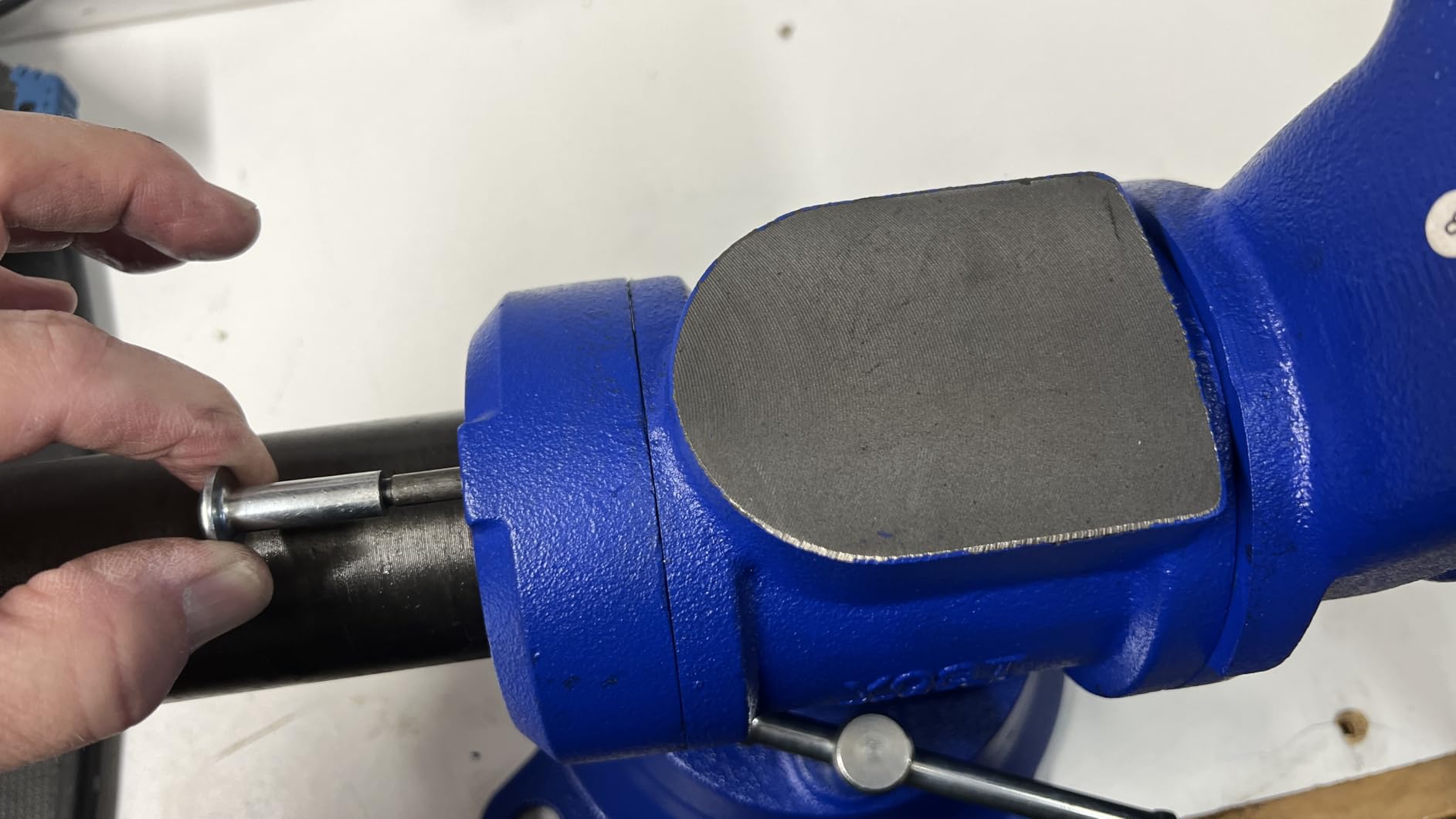

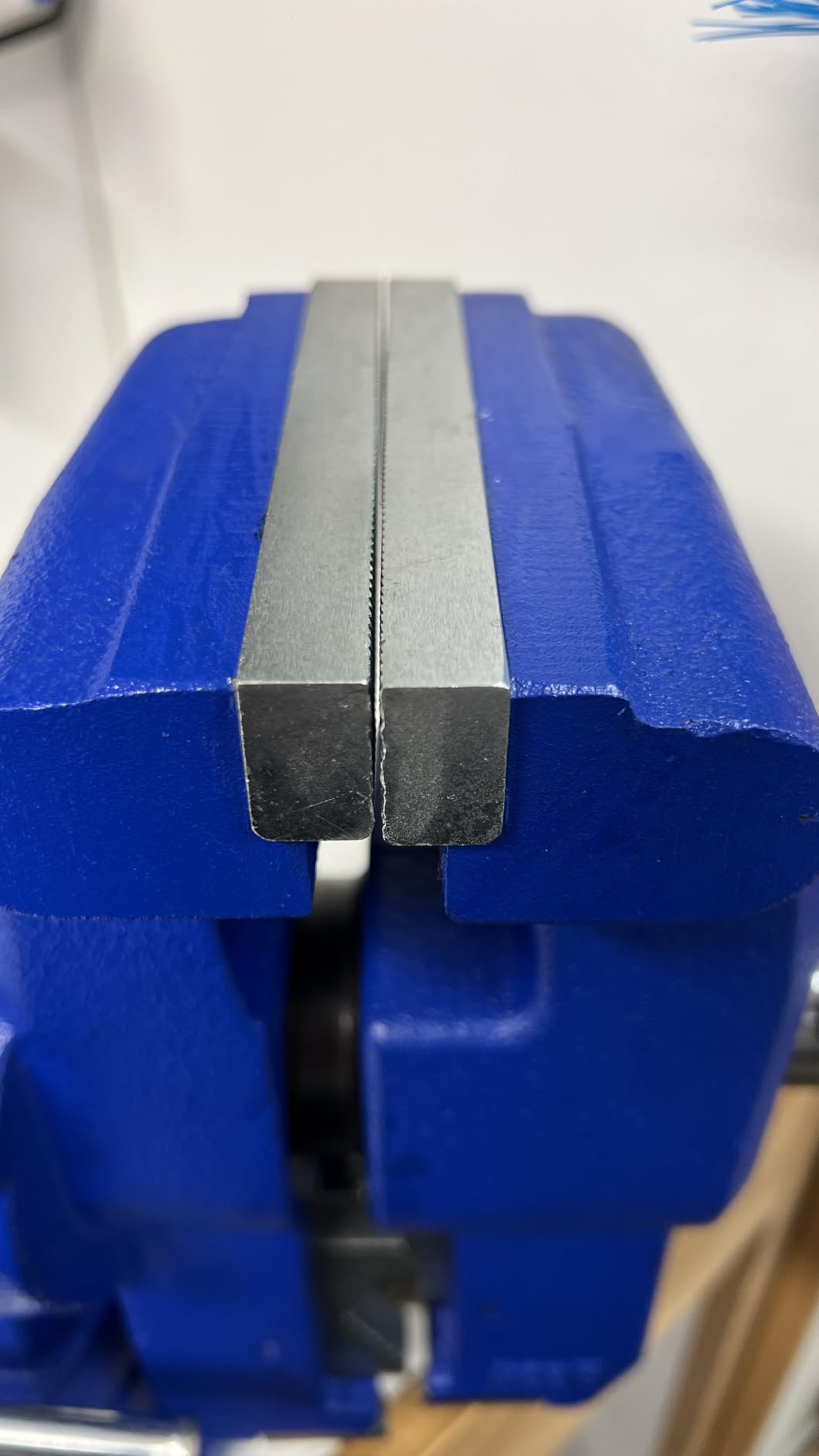

8. Yost 750-DI Multi-Jaw Rotating Vise System
Yost Vises 750-DI Multi-Jaw Rotating Vise System | 2 in 1 Multipurpose Bench and Pipe Vise | Secure Grip with Swivel Base | Made with a Combination of Ductile Iron & Hardened Steel | Gray
Jaw width: 5 in
Opening: 5 in
Throat: 4 in
65,000 PSI ductile iron
Rotates on both axes
Pros
- Rotates 360 degrees on the body and on the head
- Twelve head lock positions via a spring-loaded pin
- 65000 PSI ductile iron absorbs hammering
- 4 inch throat for deep clamping
- Three sets of replaceable hardened steel jaws
Cons
- Clamping force locks the head once you tighten down
- Slight play at the head lock pin with jaws open
- Collar cast around the slide reduces opening capacity
- Anvil is softer than premium vises
Two-axis rotation is a feature few others at this level offer. The body turns a full circle and the head turns a full circle independently, locking every 30 degrees across twelve positions.
That means you can bring a long workpiece around to a comfortable drilling or tapping angle without taking the vise off the bench or rotating the bench itself.
Three sets of replaceable hardened steel jaws are standard: bench, serrated pipe and V-jaws. The 4-inch throat is one of the deepest in this roundup.
Pipe capacity runs from an eighth of an inch up to 3.5 inches, and the interlocking V-grooved swivel base has two lockdowns to keep the whole head from walking.
At 65,000 PSI, this is the highest rated ductile iron casting on the list, and buyers specifically note that it absorbs hammering rather than cracking.
Best suited to
Machinists and fabricators who reposition work constantly rather than clamping once and walking away. The lead screw and slide are well machined, with no burrs or binding.
It is a strong choice for drilling, tapping and assembly work on parts that need to be approached from more than one direction.
Understand the head lock
Once you clamp down, the head locks in place. That is a feature for rigidity and a limitation if your process involves rotating a gripped part.
There is also slight play at the head lock pin while the jaws are open, and the cast collar around the sliding jaw trims the effective opening. Check your workpiece width against the real capacity.
9. VEVOR 4.5-Inch Bench Vise
VEVOR Bench Vise, 4.5-inch Jaw Width 3.3-inch Jaw Opening, 240-Degree Swivel Locking Base Multipurpose Vise w/Anvil, Heavy Duty Cast Iron Workbench Vise w/Bolts & Nuts, for Drilling, Pipe Cutting
Jaw width: 4.5 in
Opening: 3.3 in
Throat: 2.3 in
Pipe to 1.8 in
10 lbs
Pros
- Heavier and more stable than its size suggests
- Swivel lock holds firm without rocking
- Sharp well-aligned jaws with smooth operation
- Pipe teeth hold half inch conduit well
- Mounting bolts included
Cons
- Jaw plates are mismatched in length and cannot be flipped
- Anvil is thin with little mass
- Included bolts run about half an inch short for most benches
- Arrives caked in oil and needs cleaning before mounting
The surprise here is mass. At 10 pounds it feels far more planted than the compact size suggests, and the swivel lock stays firm under load instead of slowly walking loose.
That stability is what makes it useful for hobby and light shop work: drilling, tapping and light filing on small components where a larger vise would just occupy bench space.
The pipe and tube clamping teeth hold half-inch metal conduit without slipping, which is more than most vises at this size manage.
Jaw clamping covers pipe and tube from 0.6 to 1.8 inches in diameter, with a small anvil at 1.9 by 1.7 inches for light tapping only.
Replaceable serrated carbon steel jaw plates are the right call for longevity, even though the fit of the two plates is not identical.
Good fit for
A first vise for a small bench, a student shop, or anyone who mostly works on thin material, small brackets and electrical or plumbing parts.
The 3.3-inch opening and 2.3-inch throat are small, so set expectations honestly about part size.
Two things to correct on day one
Buy longer bolts. The included hardware runs about half an inch short for most residential benches, and a short bolt under a heavy vise is how bench tops split.
Wipe the preservative oil off before mounting, and treat the anvil as a light tapping surface only. It is thin, with little mass behind it.
10. IRWIN Multi-Purpose 5-Inch Bench Vise
IRWIN Tools Multi-Purpose Bench Vise, 5-Inch (4935505)
Jaw width: 5 in
33.1 lb cast iron body
Rotating pipe jaws
360 degree two-plane swivel
Pros
- Dual-axis rotation positions round material easily
- Rotating pipe jaw is rare at this level
- 33 lb cast iron body resists abuse and cheater bars
- Jaws stay square and aligned over many years
- Recognizable brand with a well-finished casting
Cons
- Not a machinist vise and loose by precision standards
- Pipe jaw is shallow and partly obstructed by the casting
- Occasional transit damage to the swivel lock
- Jaws can loosen slightly with use
The rotating pipe jaw is the feature that separates this from every other 5-inch vise on the list. Instead of a fixed groove, the pipe jaw swings into position, so round material can be gripped in whichever orientation your work needs.
Combined with a swivel base that rotates in two planes, it makes tubing, conduit and pipe work far less awkward than a fixed jaw ever will.
At 33.1 pounds the cast iron body is properly heavy and tolerates cheater-bar tightening without complaint. That mass is most of why it still feels solid after years of use.
Because the head rotates as well as the base, round material can be gripped in either orientation, which saves a lot of re-clamping on tube and conduit work.
Owners report jaws that stay square over long service, and a casting finish that is cleaner than most imports at this level.
Where it earns its place
Plumbing, conduit threading, tube fabrication and any shop that holds round material more often than flat. The rotating jaw removes the constant re-clamping.
A fused steel handle gives quick adjustment, and the integrated anvil keeps the vise steady when you are working light material on top.
Precision expectations
This is a general-purpose vise. Tolerances are loose by machinist standards, so do not buy it for milling or reaming work.
The machined pipe jaw is also shallower than you might expect and partly obstructed by the blue casting, so plan your jaw engagement depth before clamping a thin tube.

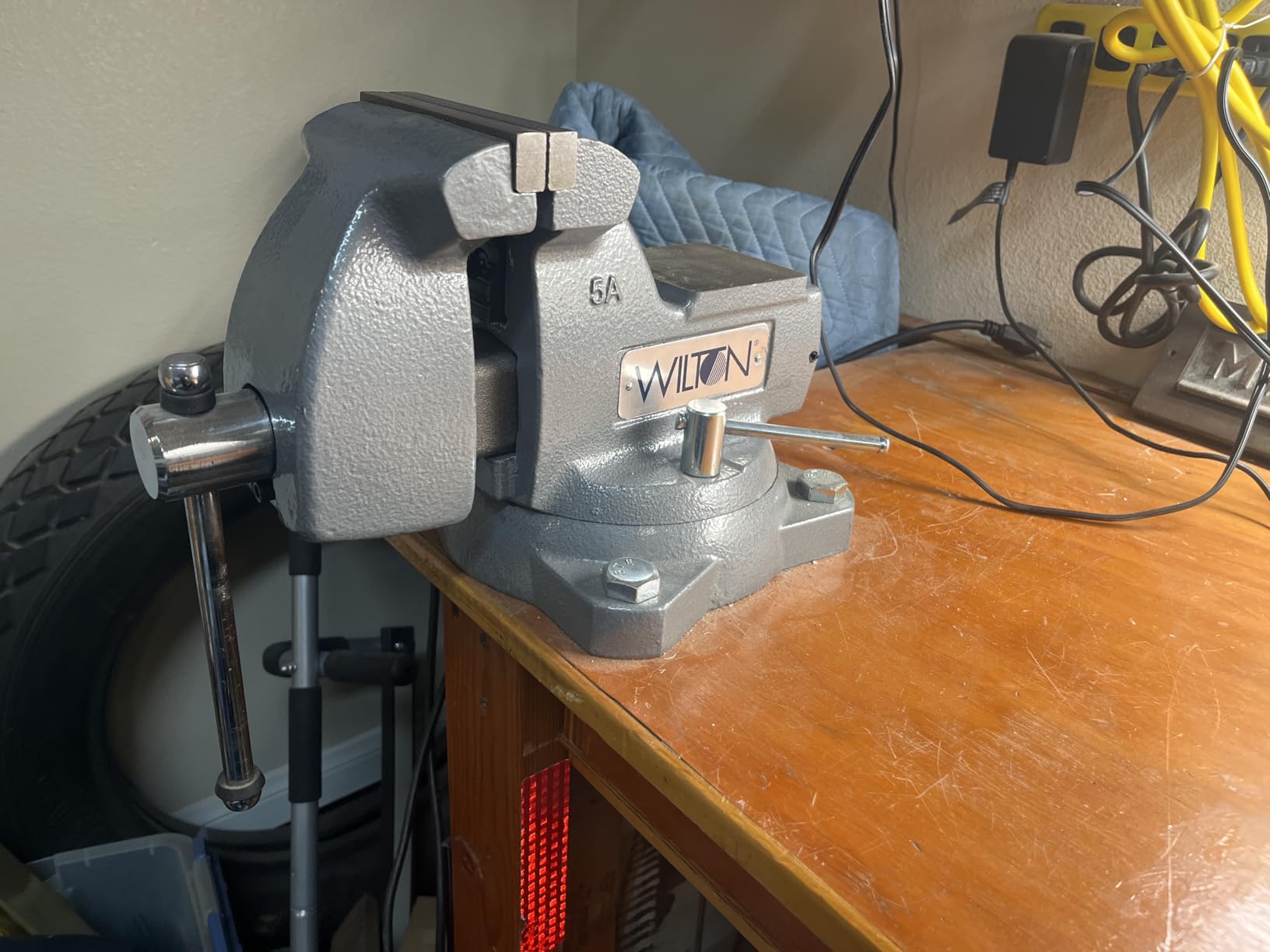

11. Wilton Mechanics Bench Vise 745
Wilton Mechanics Bench Vise, 5″ Jaw Width, 5-1/4″ Jaw Opening, 3-3/4″ Throat (Model 745)
Jaw width: 5 in
Opening: 5.25 in
Throat: 3.75 in
45.6 lb body
Enclosed spindle
Pros
- Enclosed spindle and nut keep the mechanism clean and smooth
- Heaviest body here at 45.6 lb stays planted
- 360 degree ductile iron swivel base with double lockdowns
- Replaceable hardened steel top and pipe jaws
- Lifetime warranty against manufacturing defects
Cons
- Sits in the premium tier with the lowest review volume in the group
- Jaw inserts secured with Phillips rather than hex screws
- Some examples arrive with jaws out of parallel

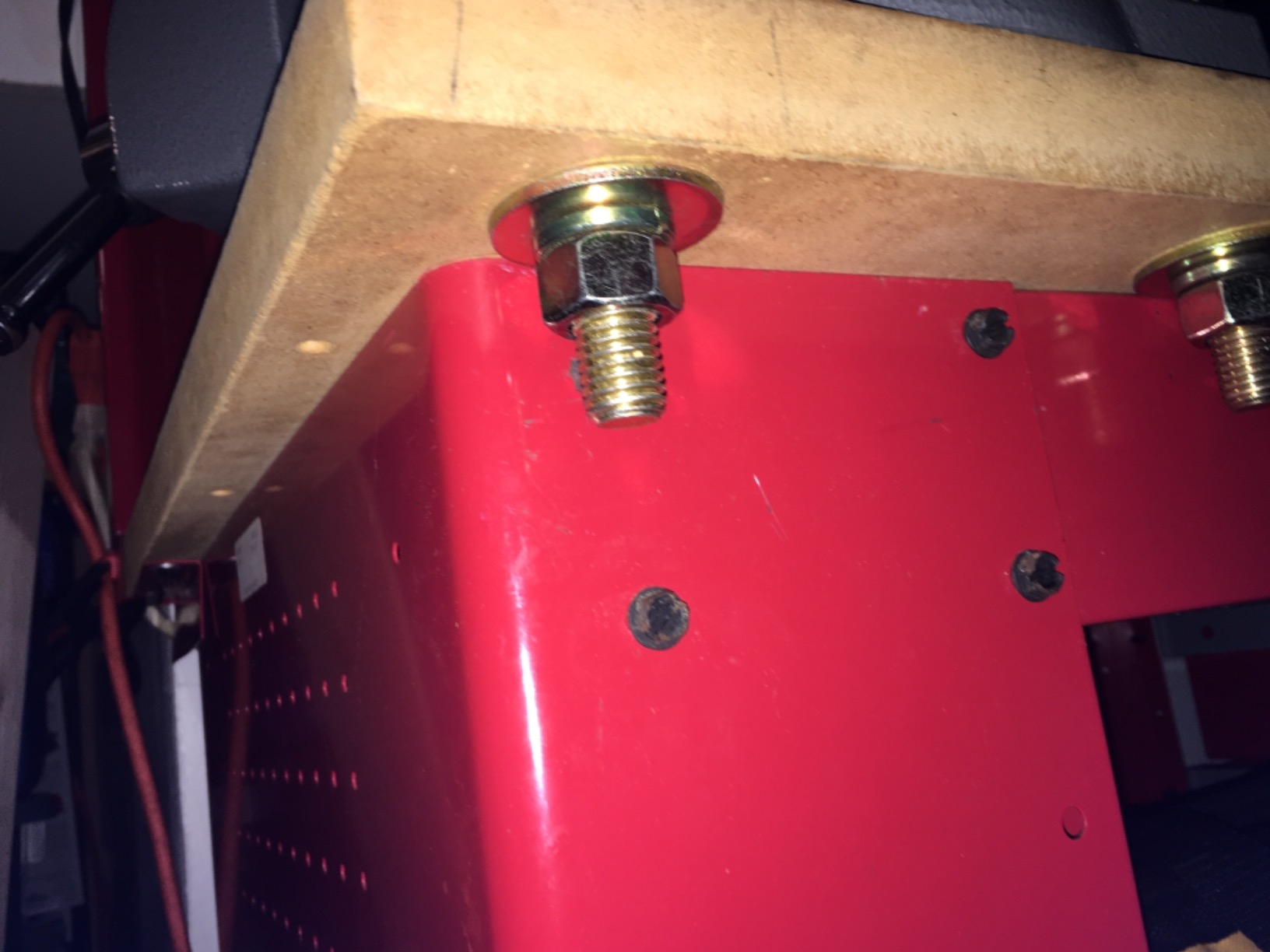

- Needs a very substantial bench and heavy bolts
The fully enclosed spindle and nut is what separates the 745 from every other vise in this roundup. Threaded mechanisms collect swarf and grit, and once that happens the screw binds. This one keeps the mechanism sealed, so it stays smooth years later after a clean and grease.
This is the heaviest unit here at 45.6 pounds, which is exactly what you want for hammering, bending and heavy cutting work.
The 360-degree ductile iron swivel base with double lockdowns stays tight in service, and the replaceable hardened top and pipe jaws cover flat, round and V-shaped workpieces.
With a 5.25-inch opening against 5-inch jaws, it holds slightly more than it looks like on paper, which matters on longer bar material.
Long-term owners describe it as solid, precisely machined and dependable, which is the profile you want from a fabrication vise.
Why it costs more
You are paying for the enclosed spindle, the ductile swivel base and the build weight. The powder coat finish resists scratches, and the large anvil takes general striking work.
If your shop already has a heavy bench, this is the vise that will feel like an upgrade every time you use it.
Where the compromises sit
Jaw inserts are held with Phillips screws rather than hex. Over years of removal and cleaning, hex is the better choice, and it is a small thing to know before you need to change a jaw set.
A minority of reviews report jaws arriving out of parallel and casting debris in the threads, so inspect and clean before the first job. It also needs heavy bolts and a bench that can carry the load.

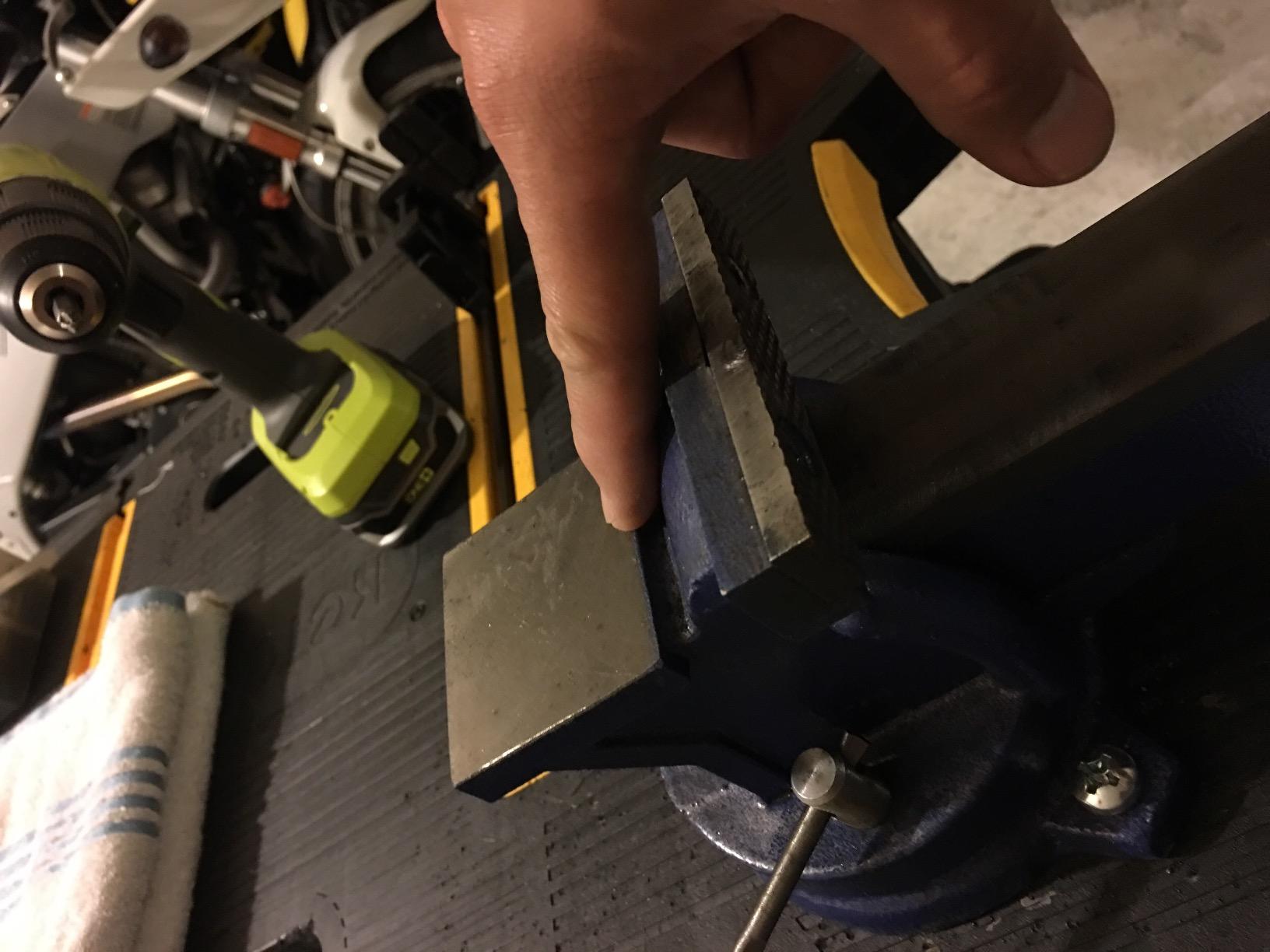

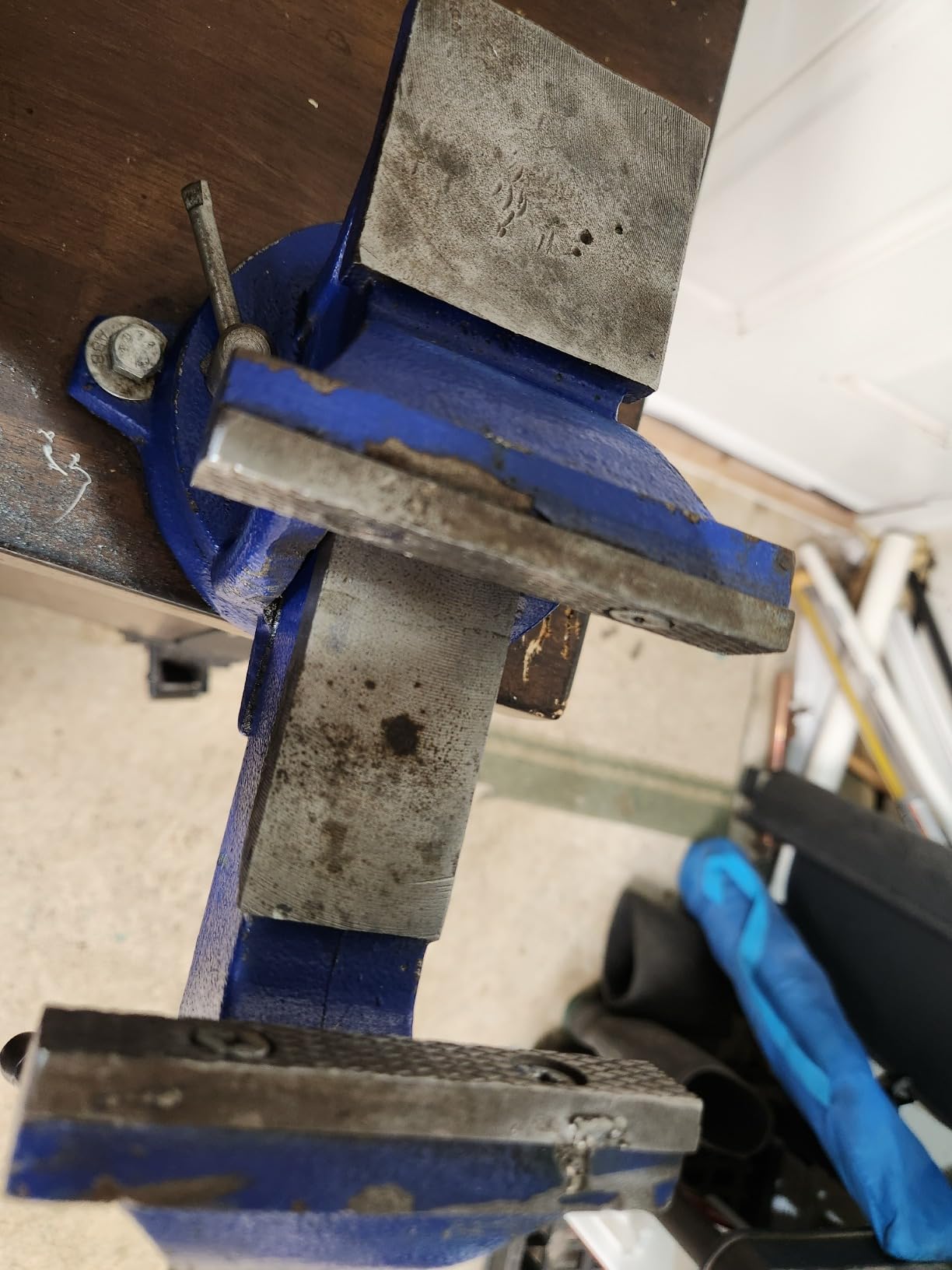

12. HFS 5-Inch Heavy Duty Bench Vise
HFS(R) 5″ Heavy Duty Bench Vise Anvil with 360° Swivel Locking Base Desktop Clamp (16LBS) – FS Blue Design
Jaw width: 5 in
16 lb cast steel body
360 degree swivel
Replaceable forged jaws
Pros
- Light weight at 16 lb suits a small bench
- Cast steel body with replaceable forged hardened jaws
- Double locking 360 degree swivel base
- Flat anvil top for light forming and shaping
- Entry point into a swivel base bench vise
Cons
- Lowest average rating in this roundup at 4.4 stars
- Less clamping authority than cast or ductile iron models
- Anvil area is small and suited to light forming
At 16 pounds this is one of the lighter vises here, and that is the reason it earns a place on this list. Bolting it to a compact bench or a sturdy work table is a realistic job rather than a structural project.
The cast steel body carries replaceable forged hardened steel jaws and a double locking 360-degree swivel base, so positioning is not the compromise people expect.
The flat anvil top handles light hammering and shaping, which covers the finishing touches that come after cutting and drilling.
At 5 inches of jaw width in a 14 by 7 by 7 inch envelope, it still gives you a real working surface without needing a dedicated bench to sit on.
Power serrated jaws give reliable bite on the material this size class can realistically hold.
Who it suits
Desktop setups, small benches, students and anyone who wants a swivel-base vise without rebuilding furniture to carry the load. Assembly work, electronics and light forming are its home ground.
It is also a good first vise. You can learn clamping technique on it before you commit to a heavier unit.
Where the rating reflects reality
Its 4.4-star average is the lowest here, and it maps directly to build weight. Light construction means less clamping authority than the cast iron and ductile iron models on this list.
Keep heavy forming and hot work for a dedicated anvil or post vise, and let this one handle assembly and detail work.
How to Choose a Bench Vise for Metalworking
Start with the largest workpiece you plan to clamp, not with the biggest number on the listing. Jaw width is the surface that supports your part, and it is the number most often confused with jaw opening.
A four-inch jaw suits a small bench and hobby work. A five-inch jaw is the sensible default for most home metalworking. Six inches and up is for large plate, long bar and pipe work.
Jaw opening is how far the jaws travel apart, and throat depth is the gap between the spindle and the front of the slide. Throat depth decides how tall a piece you can hold upright, which is why the Yost 460 and 750-DI stand out in the table above.
Material is the second decision. Cast iron is heavy, cheap and compresses rather than springs back, which suits general clamping. Ductile iron is tougher and deforms before it fractures, so it is the better choice if anyone will be striking the vise or using a cheater bar.
Third, pick your mounting method. A bolt-on swivel base is permanent and rigid. A clamp-on or desktop vise trades some rigidity for the ability to move it, which matters when the bench itself is portable.
Jaw accessories matter more than most buyers expect. Magnetic nylon pads and aluminum jaw covers are the cheapest way to stop a vise from marking finished surfaces, and the VEVOR 6-Inch already includes a set.
What Throat Depth Means on a Bench Vise
Throat depth is the distance from the front face of the slide to the center line of the acme screw, measured with the jaws closed. It tells you how much room you have between the screw and your workpiece.
A shallow throat limits you to short or low workpieces, because tall material fouls the slide before the jaws reach them. If you clamp plate upright regularly, treat throat depth as seriously as jaw width.
Cast Iron, Ductile Iron or Forged Steel
Gray cast iron, usually rated around 30,000 PSI in this group, is the traditional bench vise body. It is heavy, absorbs vibration and resists corrosion reasonably well. It also fractures rather than bending when overloaded, which is the failure users complain about most.
Ductile iron, rated at 60,000 PSI or more here, is the modern answer for shop vises. It deforms before it breaks, so a cheater bar or an over-tightened handle dulls the vise rather than cracking it.
Forged steel vises are the strongest tier, and the shops that run a post vise for hot forging choose steel for exactly one reason: it survives heat cycles and lateral blows that would destroy a casting.
On country of manufacture, check the label rather than the brand. American tool names appear on both domestic and imported product lines, and the listing is the only reliable source for a specific model.
Bench Vise Safety and Mounting Rules
Mount the vise to structure, not to a thin top. Bolt through the bench top into the frame or into a solid rail underneath. A 45-pound vise on four short bolts will pull the top apart before the vise ever flexes.
Never wind the slide fully out. When the acme screw runs out of the nut at full extension, the vise can release suddenly and drop the workpiece. Stop tightening one turn before it feels finished.
Never put an extension bar on the handle. Cheater bars multiply leverage far past what the spindle nut is designed to carry, and the result is a stripped screw rather than a tighter clamp.
Return the handle to vertical when you finish, and do not leave work clamped in a vise overnight. The clamping load slowly deforms cast iron jaws and marks the workpiece.
Wear eye protection whenever you cut, tap or chip material in the vise, keep your fingers clear of the slide and handle path, and make sure a grinder wheel has clearance from the vise body before you touch a trigger.
Frequently Asked Questions
What is the strongest bench vise available?
Strength comes from body material and clamp force, not brand. The forged steel and highest rated ductile iron bodies in this roundup carry the highest load ratings, and the Forward 30608 8-Inch leads on clamp force at 8,800 pounds with 60,000 PSI ductile iron. For hot forging or heavy lateral blows, a steel post vise outranks any bench vise on this list.
What is throat depth?
Throat depth is the distance from the front face of the slide to the center line of the acme screw, measured with the jaws closed. It determines how tall a workpiece you can clamp upright. A 2.6 inch throat limits you to short parts, while a 4 inch or deeper throat suits tall plate and standing workpieces.
What is the best bench vise for the money?
The VEVOR 6-Inch Bench Vise offers the most capacity per dollar in this roundup, with 6 inch jaw width, 5.9 inches of opening, a 3.5 inch throat and included magnetic soft jaw pads. Users on r/Workbenches also treat Harbor Freight as a price floor alternative to Yost at similar capability if you want to go even lower.
How do I determine the size of a bench vise I need?
Measure the widest piece you plan to hold and add about half an inch of jaw width. Add one inch for thin plate you do not want crushed, and work upward. Four inches suits hobby work, five inches is the default for most home metalworking, and six inches or more covers large plate, long bar and pipe.
Are Harbor Freight vices of good quality?
It depends entirely on the job. Buyers on r/Workbenches treat Harbor Freight as a price floor alternative to Yost at similar capability, and users on r/Tools place it among the weaker metals used in vises. That is fine for hobby assembly and light work, but I would not put a cheater bar on one or expect it to survive forging blows.
The Best Bench Vise for Your Shop
The Forward DT08125A 5-Inch Heavy Duty Bench Vise is our pick for the best bench vise for metalworking, earning the highest average rating in the group on smooth screw action, three jaw sets and a ductile iron body that takes abuse instead of cracking.
Pick the VEVOR 6-Inch if capacity matters most, the Wilton 11106 if you want a lifetime warranty, the Wilton 745 if you work heavy fabrication material, and a smaller vise like the Yost LV-4 or HFS if your bench cannot carry a heavy unit.
Measure your material, bolt the vise into structure, and it will outlast the rest of your hand tools.
