Aluminum is the easiest metal on a CNC machine and the most revealing. It cuts fast, it machines with hand tools, and it will expose every weakness in a cheap frame within the first job. If you want the short answer: the best CNC routers for aluminum are the ones with a rigid welded steel or cast iron frame, a spindle at roughly 710W or more, and a ball screw or linear rail drive on every axis. Everything else is a bonus.
That threshold matters more than any brand name. Below it, a machine can engrave thin aluminum sheet and nothing else. At or above it, you can profile, pocket, drill, tap and do light 3D work in plate. The ten machines below all clear some version of that bar, from compact desktop frames to a 610 x 410 mm bed that handles real sheet stock.
I spent the last few months reading owner reports, spec sheets and forum threads on these frames rather than trusting vendor pages alone. What surprised me most is how much the honest reviews agree: nearly every buyer who tries aluminum on a flimsy machine blames the spindle, when the actual failure is usually frame deflection under cutting load. We use similar frame logic when we pick between wood routers and metal-capable machines in the shop.
This guide covers what actually changes your results on aluminum: spindle tiers, rigidity, drive system, workholding, chip evacuation and cutter selection. No ranking here depends on a machine being better at wood. If your shop only needs to cut 6061 plate up to about 1/4 inch thick and make repeated small parts, the first three picks will serve you well for years.
Table of Contents
Top 3 Picks for CNC Routers for Aluminum in 2026
FoxAlien Masuter 3S
- 400W spindle rated for aluminum
- Closed-loop NEMA 23 steppers with 2.2 Nm torque
- Upgrade mount for a 1.5kW spindle
Twotrees TTC450 Pro
- 775W brushed spindle
- 460 x 460 x 80 mm working area
- 0.0025 mm Z-axis positioning
NYMOLABS NBS-6040
- 710W router adjustable to 30000 RPM
- Linear rails and ball screws on all axes
- 610 x 410 x 120 mm work area
Best CNC Routers for Aluminum (October 2026)
| Product | Specifications | Action |
|---|---|---|
| FoxAlien Masuter 3S |
|
Check Latest Price |
| Twotrees TTC450 Pro |
|
Check Latest Price |
| NYMOLABS NBS-6040 |
|
Check Latest Price |
 Genmitsu PROVerXL 4030 |
|
Check Latest Price |
 Genmitsu 3030-PROVer Ultra |
|
Check Latest Price |
 SainSmart Genmitsu 4040-PRO MAX |
|
Check Latest Price |
 Genmitsu 4040-PRO |
|
Check Latest Price |
 FoxAlien XE-PRO |
|
Check Latest Price |
 AnoleX 4030-Evo Ultra 2 |
|
Check Latest Price |
 AnoleX 3030-Evo Max |
|
Check Latest Price |
1. FoxAlien Masuter 3S – Best CNC Router for Aluminum Overall
FoxAlien Masuter 3S CNC Router Machine with Closed-Loop Stepper Motors
400W spindle for soft metals
Closed-loop NEMA 23 steppers
15.75 x 15.75 in work area
Pros
- Closed-loop steppers deliver 2.2 Nm with no lost steps
- No calibration or tuning needed out of the box
- 400W spindle cuts soft aluminum plus wood and plastics
- Assembles in about 30 minutes with clear instructions
- Works cleanly with CNCjs and other open-source senders
Cons
- Ships with only a starter set of 1/8 inch V-carve bits
- Gantry screws can loosen under heavy vibration
- Component failures handled by email only
This is the machine I keep coming back to. The Masuter 3S pairs a 400W spindle with closed-loop NEMA 23 motors rated at 2.2 Nm of torque, and that combination is what lets a mid-size frame cut aluminum without balking. Open-loop steppers of the same size lose steps under exactly the load that aluminum cutting applies.
Owners consistently report the biggest surprise is that nothing needed tuning. No belt tensioning, no calibration ritual, just home it and cut. Several describe cutting aluminum straight from the first test cut with no lost steps and finish good enough to hand off directly.
The spec sheet matters less than the upgrade path here. The Z mount takes a 65mm clamp, which accepts either a handheld trim router or a 1.5kW water-cooled spindle. That single design decision turns a good desktop machine into a legitimate aluminum router when you are ready, and owners across hobby CNC forums describe doing exactly that before going further.
Rigidity comes from reinforced 2360mm extrusions with dual HG-15 linear rails on the Z axis and a T12 lead screw. The Z-axis rails are the part that matters most for metal, because side load from a cutting tool is what deflects a cheap gantry and ruins part accuracy.
What you get that rivals do not
Most entry machines ship with a single Z rail or a plain V-slot wheel. Dual linear rails on the Z axis is the spec that separates this frame from cheaper competitors, and it is what lets the machine hold a cut depth consistently across a 15.75 inch span instead of fading in the middle of the bed.
The open-source toolchain support is a quiet advantage too. CNCjs, F-Engrave and FreeCAD all work without modification, and there is a built-in 4th axis rotary port if you later want to cut cylindrical parts in aluminum.
Where it falls short
The bundled tooling is minimal. You get a starter set of 1/8 inch V-carve bits and nothing else, so budget for a proper aluminum end mill before your first metal job. The 400W spindle also runs hot and loud under sustained load, and the Z clearance of 3.74 inches limits how tall a workpiece can be.
A heavier build also means the gantry screws can loosen with vibration, so a quick check before each job is worthwhile. Those are small annoyances rather than deal breakers, which is why this is where I would start.
2. Twotrees TTC450 Pro – Budget Pick for Large Desktop Work
Twotrees TTC450 Pro All-Metal CNC Router Machine with NEMA 57 Stepper Motor
775W brushed spindle
460 x 460 x 80 mm working area
NEMA 57 Z-axis stepper
0.0025 mm Z positioning
Pros
- Aluminum alloy and stainless steel structure resists flex
- Runs within a day of unboxing
- Large 18 inch bed suits panels and batch jobs
- NEMA 57 Z-axis gives fine depth control
- Works with ArtCam Fusion 360 Easel and Carveco
Cons
- 775W brushed motor is short of headroom for deeper cuts
- Some quality control reports of missing hardware
- Cut width can drift between identical simple cuts
The TTC450 Pro is the largest working area in this group at 460 x 460 mm, and it is also the one with the most owner history behind it at more than five hundred reviews. Owners describe making real parts in the first week, including a cocktail smoker and decorative dishes, and report a rigid structure that does not visibly flex.
The Z axis uses a NEMA 57 stepper with positioning accuracy listed at up to 0.0025 mm. That larger stepper is unusual on a machine at this level and it is the reason the machine handles fine relief carving and controlled depth passes as well as it does.
Software support is broad. Open-source GRBL control works with ArtCam, Fusion 360, Easel and Carveco Maker across Windows, macOS and Linux, and there are expansion ports for a 4th axis, a laser module and a 500W spindle speed control. For someone who will mix metal with wood and PCB work, that flexibility is genuinely useful.
The accessory kit is unusually complete for the price point, with ten cutting tools, six clamping plates and test material included. Setup is fast, and the dual XYZ limit switches are there to damp vibration during fast moves.
Why the big bed changes the job list
An 18 inch square bed means a full sheet of common aluminum stock fits without tiling. Sign blanks, panel templates and batches of identical small parts can all be nested in one setup, which is exactly the kind of work that eats time on a 400 mm machine and never quite fits on a 300 mm one.
For a small business doing short-run panels, that difference is often larger than the difference between two spindle options. If your work is sheet-based rather than jewelry-scale, the bed is the spec to prioritise.
What to watch out for
The included 775W brushed motor is the honest limitation. Owners call it noisy and short of headroom for aluminum, and a substantial number plan the 550W upgrade. A minority of reviews also report missing hardware and a faulty Z-axis coupler, so inspect the machine early rather than mid-project.
There are reports of inconsistent cut width on identical simple cuts, which points to calibration drift rather than a spindle problem. If that shows up, check tramming and the coupling before blaming the cutter.

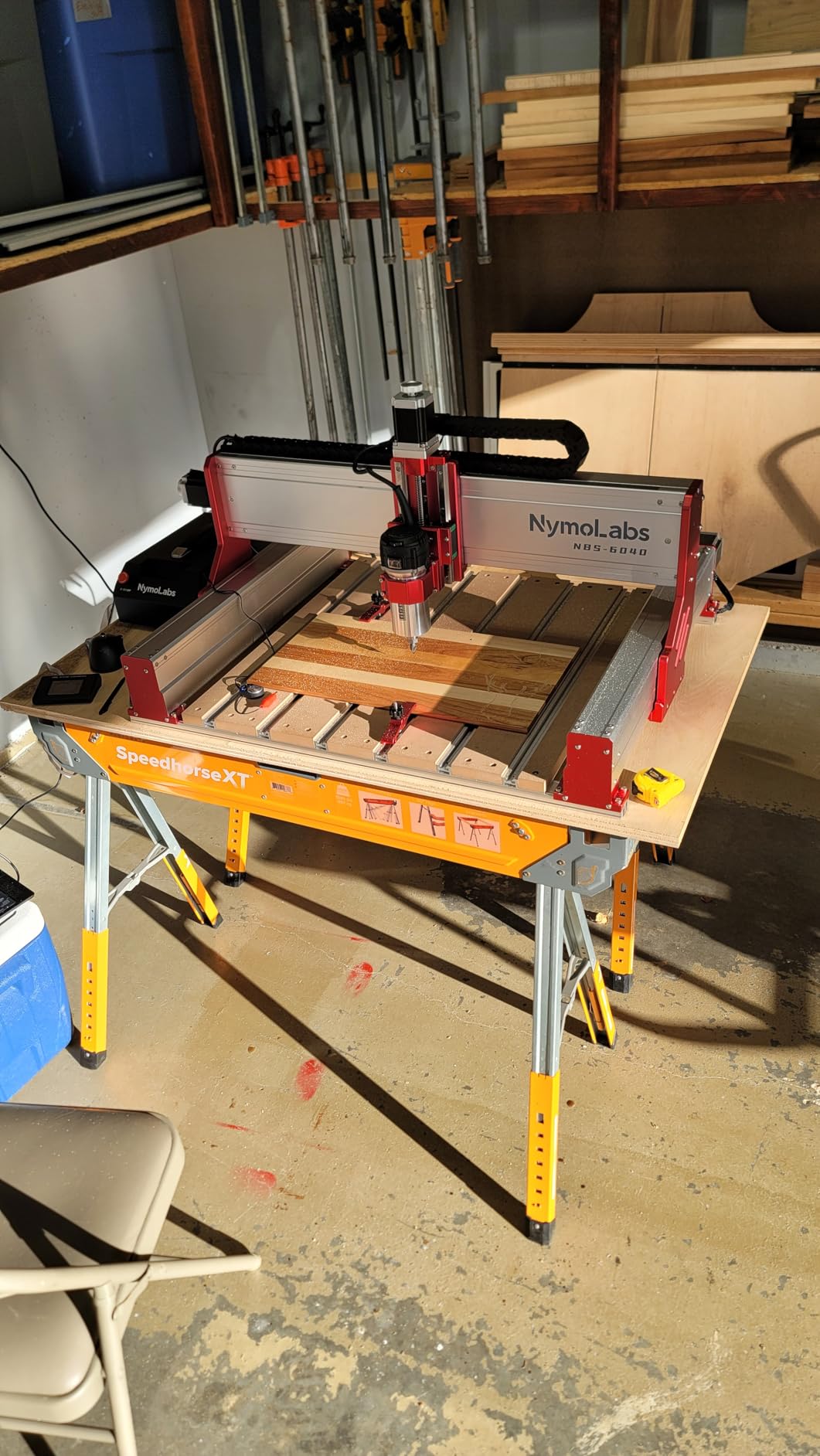

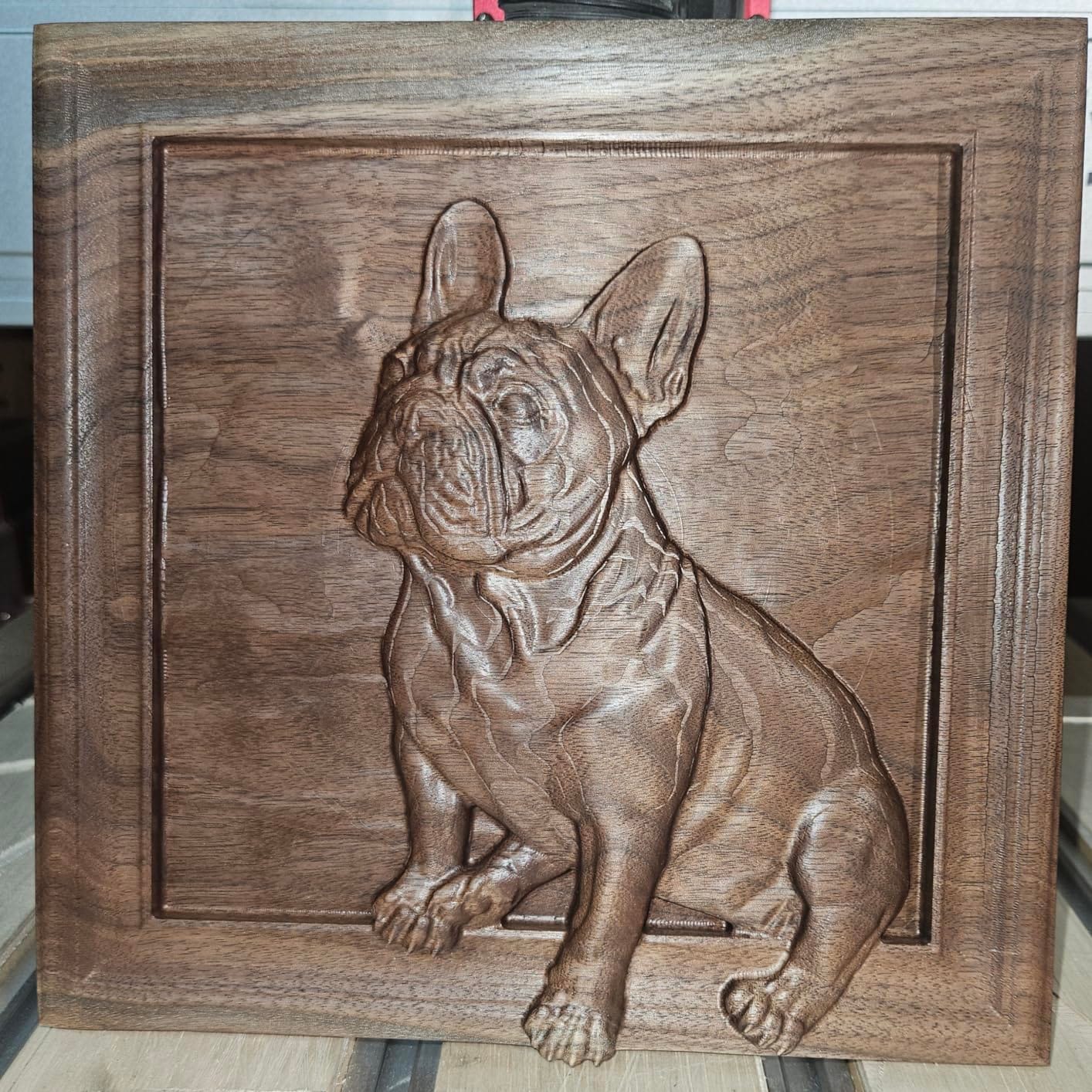

3. NYMOLABS NBS-6040 – Best for 4×4 Sheet Work
NymoLabs NBS-6040 CNC Router Machine, 710W Spindle for Wood Acrylic & Metal
710W soft-start router adjustable to 30000 RPM
Linear rails and ball screws on every axis
610 x 410 x 120 mm work area
GRBL v1.1 with 80 kHz driver
Pros
- Linear rails and ball screws on all axes remove gantry play
- One owner cut 170 aluminum parts more precisely than a drill press
- Assembly takes about 20 minutes
- Fills the gap between hobby routers and industrial machines
- Support replaced a spindle within two days
Cons
- 1/4 inch collet is not included
- Offline controller screen is small
- One owner reported spindle failure after about four months
The NBS-6040 is the only machine here with a working area that a shop could genuinely run full sheets through, at 610 x 410 mm. It also carries the highest owner rating in this group at 4.6 stars, and reviewers repeatedly describe it as the best value at this size.
Linear rails and ball screws on every axis is the headline. That combination is what separates a machine that cuts repeatably in aluminum from one that drifts, and owners describe near-zero gantry play in practice. The 32-bit driver pushes pulse frequency up to 80 kHz on open-source GRBL v1.1.
The custom 710W router uses soft start and constant current drive with adjustment from 7000 to 30000 RPM. That wide range lets you match aluminum end mill recommendations directly rather than being limited to a fixed speed. One owner’s verified metal use involved cutting 170 pieces of 1/8 inch aluminum channel to a precision they described as better than a drill press.
Setup is genuinely quick at roughly twenty minutes, and the instructions are fully illustrated. Expansion ports cover 4th axis, MPG, Z probe, air pump, lighting, air blowing and dust boot, so the machine can grow into a fuller setup later.
Why the size matters more than the wattage
For sheet work, bed size decides what you can quote. A 400 mm machine forces you to tile or stage large panels, and staging means re-homing the workpiece between operations, which on aluminum means re-setting zero and re-checking workholding.
The rails and ball screws then decide whether you can cut that panel accurately. At this size there is no substitute for rigidity across a 600 mm span, which is why this machine leans on rails where smaller frames can get away with screws alone.
Where it lets you down
The 1/4 inch collet is not included, so plan to buy one before your first full-width cut. The 2.8 inch offline touchscreen is small and uses microSD rather than USB, which is fine for setup but tiring for long jobs.
One owner reported a spindle failure after roughly four months and seven hours of use, so the sample is too small to call a pattern. It is also a heavy unit, so plan how it gets into the room before it arrives.

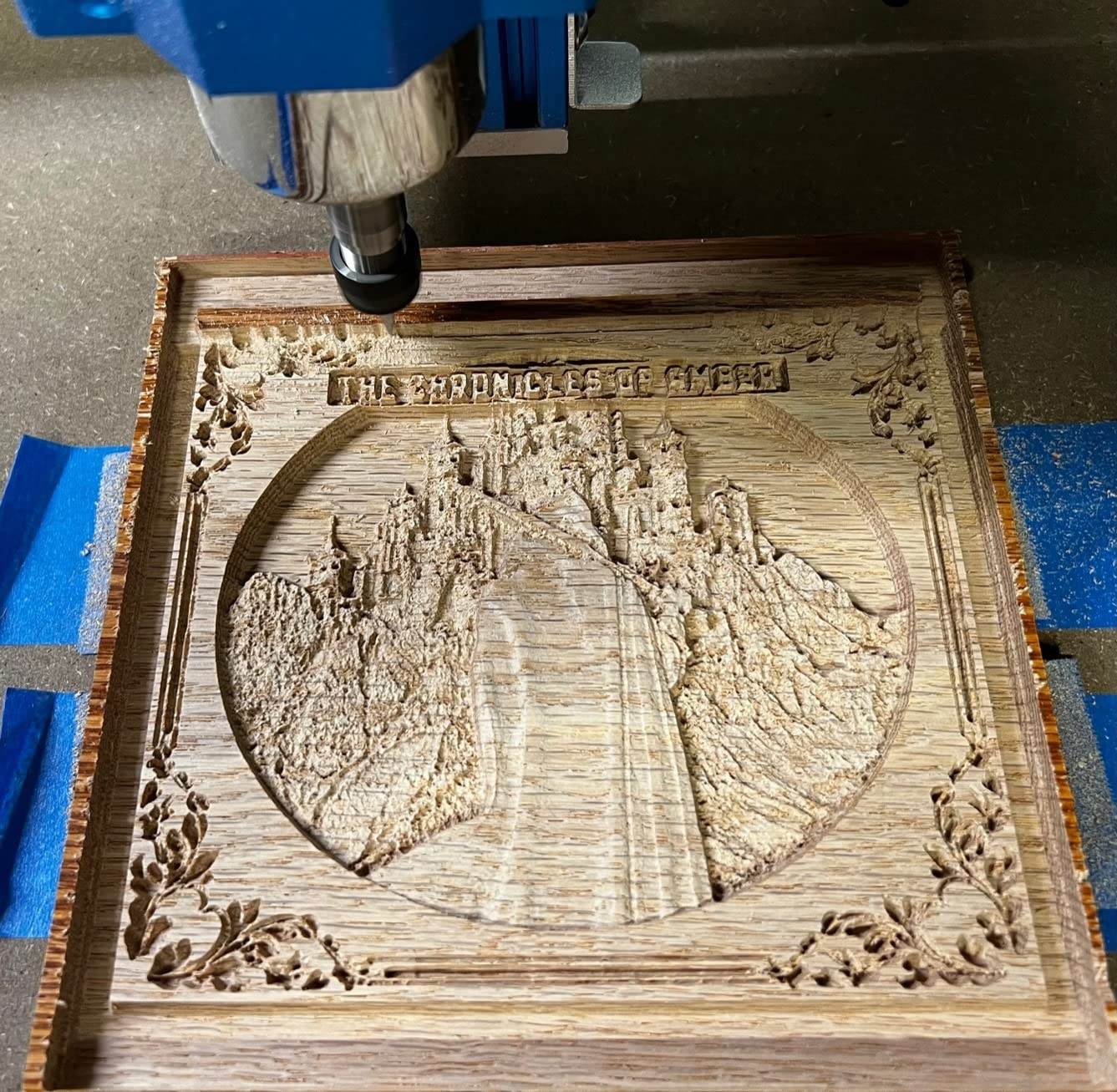

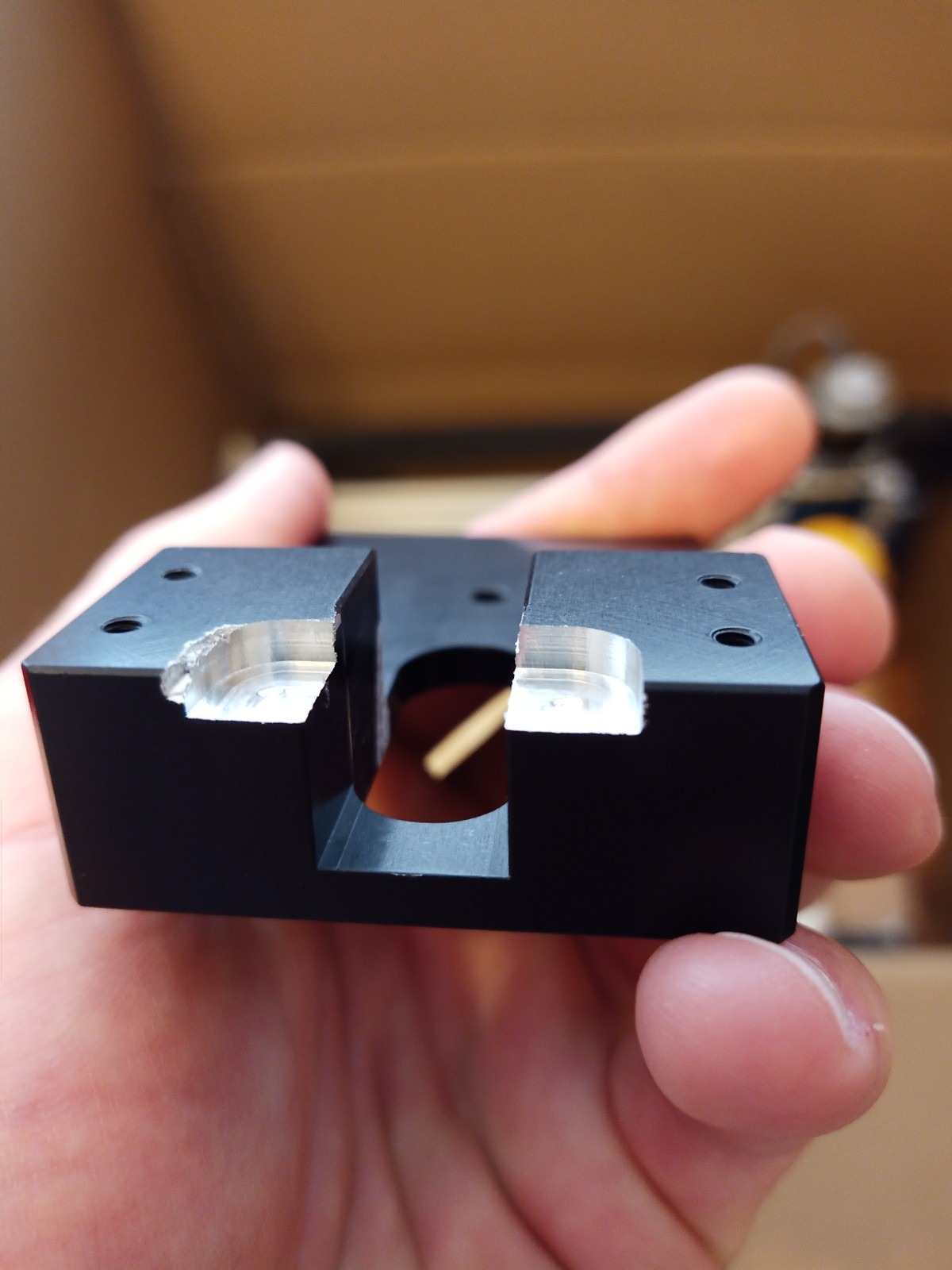

4. Genmitsu PROVerXL 4030 – Best Value for a Small Shop
Genmitsu PROVerXL 4030 CNC Router Machine for Wood & Metal
300W spindle with router adapter
C-beam frame with NEMA 23 steppers
400 x 300 x 110 mm work area
Leadscrew with dual Y-axis screws
Pros
- Pre-assembled modules make setup quick
- C-beam structure gives repeatable cuts
- Dual Y screws and Z optical drive add rigidity
- Limit switches e-stop and Z-probe all included
- Expansion path to 600 and 1000 mm beds
Cons
- 300W spindle is the limiting factor for metal
- 400 x 300 mm bed is small for sheet stock
- Leadscrew drivetrain can accumulate backlash
The PROVerXL 4030 is the machine most buyers end up with first, and the reason is simple: it arrives nearly assembled with the electronics already wired. That removes the longest, most demoralising part of building a desktop CNC, and owners consistently report a dependable, repeatable frame rather than a hobby-grade curiosity.
The C-BEAM structure with NEMA 23 steppers is the core of its rigidity, and the leadscrew drive with dual Y-axis screws gives it more stability than a belt-driven entry machine. The Z axis uses an optical drive rather than a traditional v-slot, which reviewers single out as an improvement.
For aluminum, the honest framing is that this machine is a platform rather than a finished metal cutter. The included 300W spindle is modest, and the manufacturer includes an adapter for a drop-in DeWalt DWP611 upgrade, which many owners do before attempting metal. With that upgrade in place it handles light aluminum work competently.
Everything else is included: XYZ limit switches, emergency stop, speed control and a Z-probe, plus a three-month Carveco Maker subscription. That is a complete package with no add-on purchases needed to get running.
What the expansion path really costs you
Genmitsu sells upgrade kits to 600 x 600 mm and 1000 x 1000 mm beds. That matters because it means a 4030 is not a dead end. Owners who started on the small bed and later moved up generally report reusing the control box, spindle and wiring, which softens the effective cost of growing.
The limitation to plan around is the work envelope today. At 400 x 300 mm you are working on jewelry, small brackets and control panels rather than sheet stock, so set expectations before the machine arrives.
Where the compromises show
Two things limit aluminum performance. The 300W spindle is the first constraint, and the leadscrew drivetrain can accumulate backlash compared with a ball screw setup, which shows up as lost accuracy over repeated passes.
That is why I rank it as best value rather than best for aluminum. It is a strong, honest first machine with a documented route to more power, and for a lot of buyers that combination is worth more than a bigger machine with nothing to grow into.

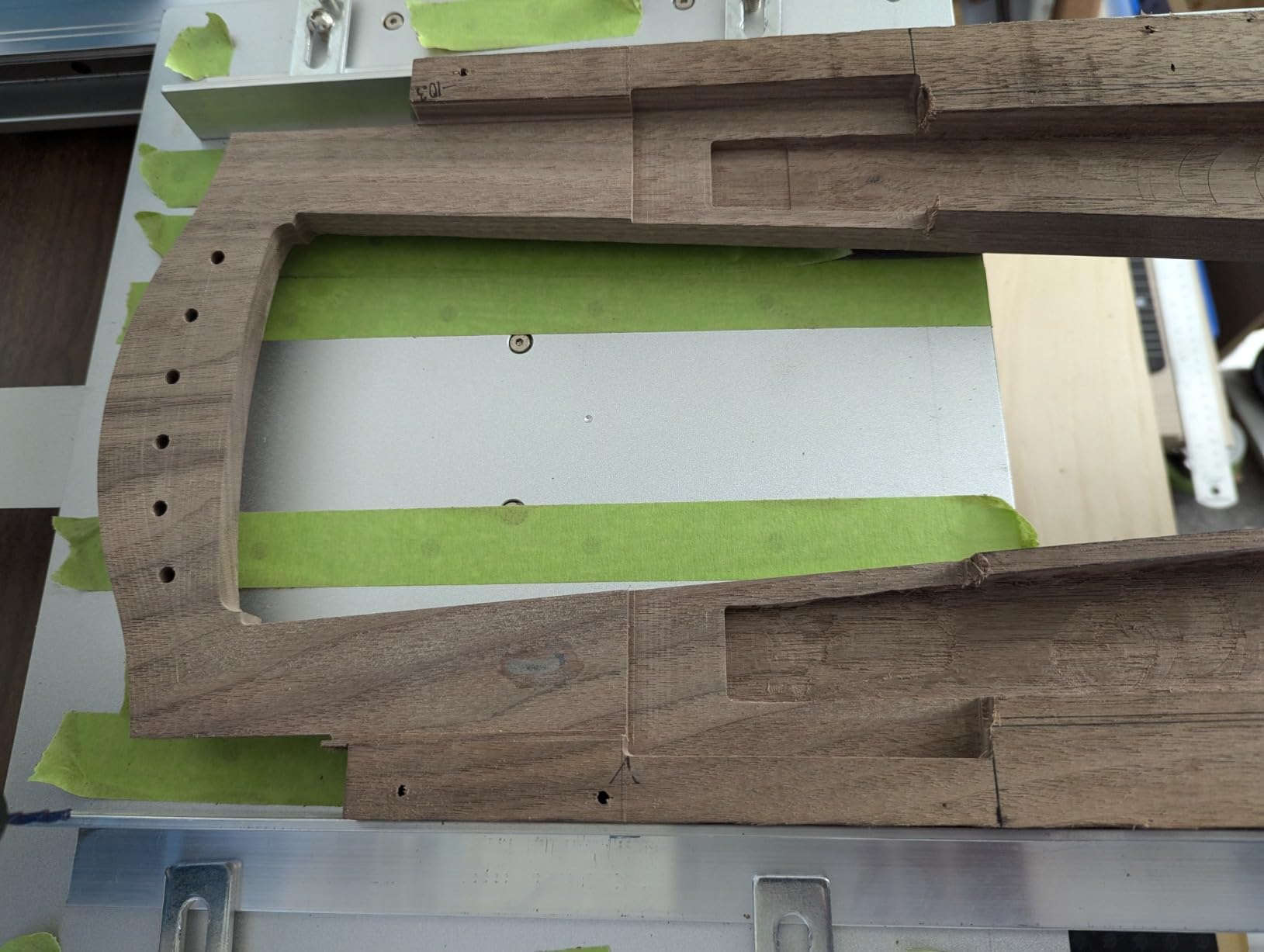

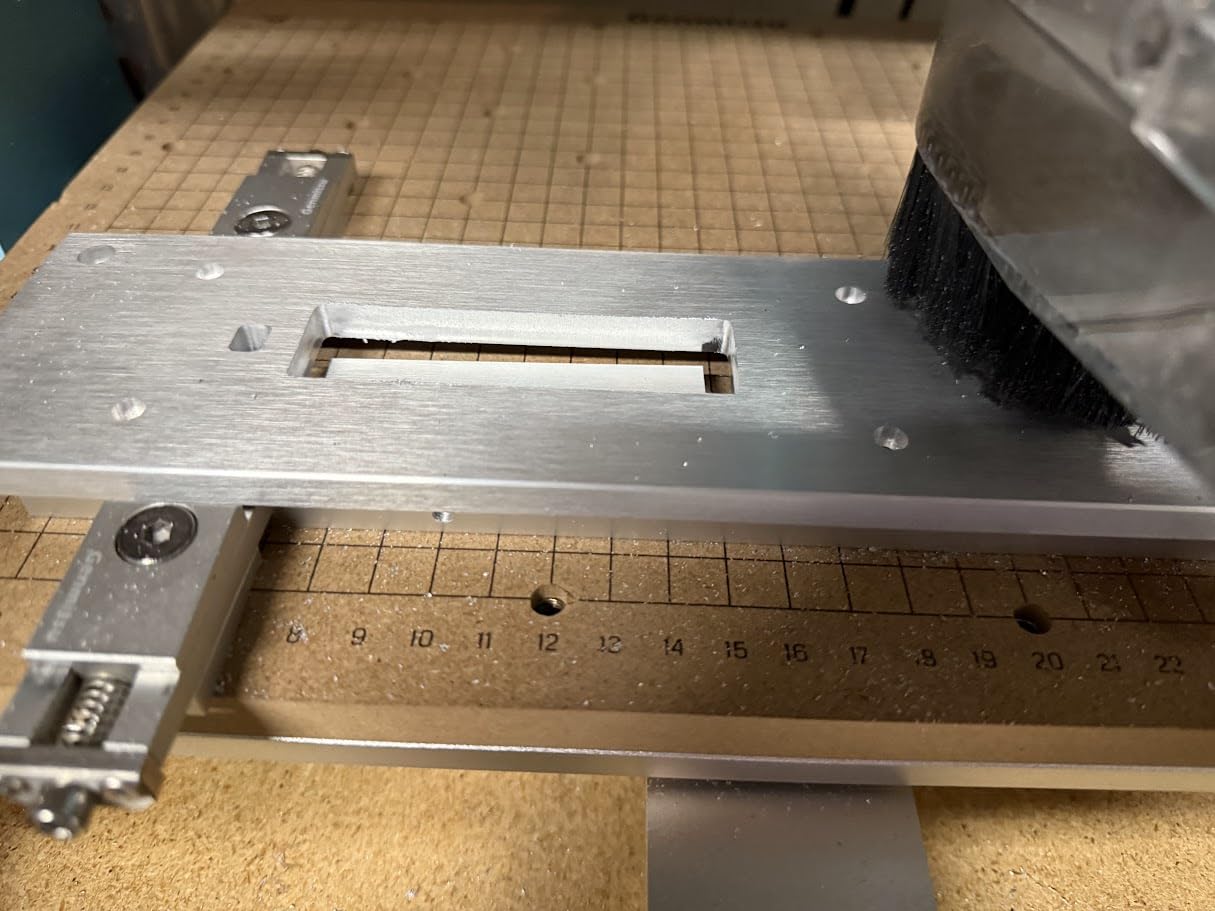

5. Genmitsu 3030-PROVer Ultra – Best for Measured Aluminum Accuracy
Genmitsu 3030-PROVer Ultra CNC Router Machine for Metal, All Metal CNC Engraver with Powerful 710W Spindle, ±0.03mm High Precision, Dual Linear Guides & Ball Screws, for Aluminum & Acrylic Engraving
710W digital spindle
HG15 dual linear rails and 1204 ball screws
Plus or minus 0.03 mm stated precision
All-metal chassis
Pros
- Ball screws and dual rails on all three axes
- Owners measure within 0.01 mm over 100 mm on aluminum
- 710W spindle runs 6061-T6 with a quality router
- About 10 minute setup from two modules
- Low maintenance over heavy daily use
Cons
- Noisy during operation in shared workspaces
- Aluminum chips can foul limit switches and halt a cut
- Z touch probe is not reliable
Experienced machinists rate the 3030-PROVer Ultra as the most precise and rigid machine in its class, and the owner measurements back that up. Several people have measured dimensional accuracy within 0.01 mm over 100 mm on aluminum, which is closer to a machinist tolerance than most machines at this size advertise.
The drivetrain explains it. HG15 dual linear rails and 1204 ball screws are fitted on every axis, not just the Z, and that is the configuration that keeps a cutting tool from pushing the gantry around. The X and Y axes are dust-protected with hidden cable management.
The 710W digital spindle has a real-time display and is claimed at roughly 2.4 times the power of the older 300W units. Owners report it running 6061-T6 and even mild steel once paired with a quality trim router, which is well beyond what the price class usually promises.
Setup is about ten minutes because it ships as two pre-assembled modules, with a side-mounted emergency stop. Control is through the Genmitsu app plus Candle, UGS and Easel, so it drops into most existing workflows.
Why ball screws on every axis matter
Aluminum cutting force is lateral. The cutter pushes sideways on the tool, the tool pushes on the gantry, and any lash in that chain becomes an error you measure on the finished part. Ball screws with dual rails remove that slack almost entirely, which is why this machine holds accuracy across repeated cuts rather than only on a fresh setup.
If your parts have tight tolerances or you plan to cut matched sets, this drivetrain is worth more to you than a larger spindle would be.
The chip problem nobody mentions
Aluminum chips are the specific weakness here. Several owners report chips fouling the limit switches and halting the machine mid-cut, which is both a lost job and a real safety consideration on an enclosed frame.
The Z touch probe is also reported as unreliable and may need cable and trigger verification. The offline controller lacks a coordinate readout and Z-probe function, and some open-source senders hit GRBL firmware status-pin compatibility issues that need workarounds.
6. SainSmart Genmitsu 4040-PRO MAX – Best for Linear Rail Motion
SainSmart Genmitsu 4040-PRO MAX CNC Router with 710W Trimmer
710W digital display trim router
Linear guideways on X and Z axes
410 x 405 x 77 mm work area
100 mm pass height
Pros
- Linear rails deliver very low backlash with one owner measuring about 0.01 mm
- 710W spindle is a real step up from entry routers
- Pre-assembled modules with clear instructions
- 100 mm pass height suits taller material
- Support replaced a high-runout router at no cost
Cons
- Bundled router can arrive with heavy runout
- Technical support can be slow to respond
- No spindle relay in the box
- Software defaults can halt a job
The 4040-PRO MAX is interesting because it puts linear guideways on the X and Z axes, which is a step beyond the screw-only frames in this price range. One owner measured roughly 0.01 mm accuracy as a result. On a machine cutting aluminum, that class of motion quality is what keeps a profile square over a full 410 mm pass.
The 710W digital display trim router is noticeably smoother and stronger than entry-level routers, and the reinforced spoilboard with an integrated T-track and central aluminum support bar keeps the bed flat under a plate.
The 100 mm pass height is over 40 percent higher than the standard PRO version, which means you can work with taller material without repositioning. That matters on aluminum extrusions and thicker blocks where you need the tool to reach past the workpiece top.
Owners who receive a good unit rate the motion characteristics highly, and support replaced a high-runout router at no cost after video evidence was provided. The 3.9 rating reflects a split experience rather than a weak machine.
Check the spindle before your first cut
The single most common complaint is that the bundled trim router arrives with substantial runout, which then needs replacing before it will cut metal cleanly. Runout is exactly what produces a wandering tool path and a poor finish in aluminum, so this is worth verifying the moment the machine is set up.
Two other friction points are worth knowing: gSender defaults to grblHAL and can halt a job unless you switch it to grbl, and there is no spindle on and off relay in the box, so software control of the router needs an extra purchase.
Wiring and support issues to expect
Several reviews document mis-routed Y-axis cables in the rear extrusion causing wiring faults and alarm codes, and X-axis limit switch and circuit board connector faults that caused homing failures. Both are assembly and component issues rather than design limits, but they are real and recur.
Support is described as helpful once engaged but slow to first response, sometimes several days. If you work to deadlines, factor that into your choice.
7. Genmitsu 4040-PRO – Most Versatile for Steel Tube Frames
Genmitsu 4040-PRO CNC Router Machine for Metal Acrylic Cutting Milling
Dual 16mm HSS steel tubes per axis
Lead-screw drive
435 x 400 x 80 mm work area
32-bit controller with silent drivers
Pros
- Dual 16mm HSS steel tubes give square repeatable results
- About 15 minute build from pre-assembled modules
- Reinforced spoilboard with aluminum center support
- Silent Toshiba drivers keep noise low
- Support replaced a power supply and controller at no charge
Cons
- Spindle tops out near 9000 rpm
- 1/4 inch shank bits do not fit the included collar
- Upgrade parts cost close to the price of a new machine
Most entry frames are extruded aluminium. The 4040-PRO uses dual 16mm HSS steel tubes per axis with lead-screw drives, and that is a genuine step up in stiffness for a machine at this level. Owners report it machines square and level straight out of the box with no detected axis play.
The 32-bit controller with silent Toshiba drivers makes this one of the quietest machines here, which is a genuine advantage if you cut in a shared space. Assembly is roughly fifteen minutes from pre-assembled modules.
The dominant complaint is the spindle. It tops out around 9000 rpm, below the 12000 or more many bits need for a clean cut, and the included collar does not accept 1/4 inch shank bits. Many owners plan to move to a 1.5kW VFD spindle or a trim router, which is where the machine really comes into its own for metal.
Support is a genuine strength here. Buyers report a failed power supply and a defective controller both replaced free of charge, which is more than most machines at this level manage.
Why steel tubes beat extrusion here
Steel tubes resist flex better than aluminium extrusion of the same section, and for metal work that translates directly into accuracy. The reinforced hybrid spoilboard with a central aluminum support bar reduces bed sagging, so a plate stays flat across the 435 x 400 mm area instead of dipping in the middle.
The trade-off is lead screws rather than ball screws. They are cheaper and rigid enough for light work, but they wear and can develop lash over time, so expect more frequent tramming checks than on a ball screw frame.
Where the budget shows up
Three practical limits stand out. The spindle speed ceiling of about 9000 rpm restricts the cutters you can run efficiently, the 1/4 inch collet incompatibility forces a specific tooling set, and upgrade parts such as spindles and extensions can cost close to the price of a new machine.
The bundled Candle software is also considered lacking, pushing most users to gSender or VCarve Pro. If you are comfortable with that trade, the frame itself is solid.

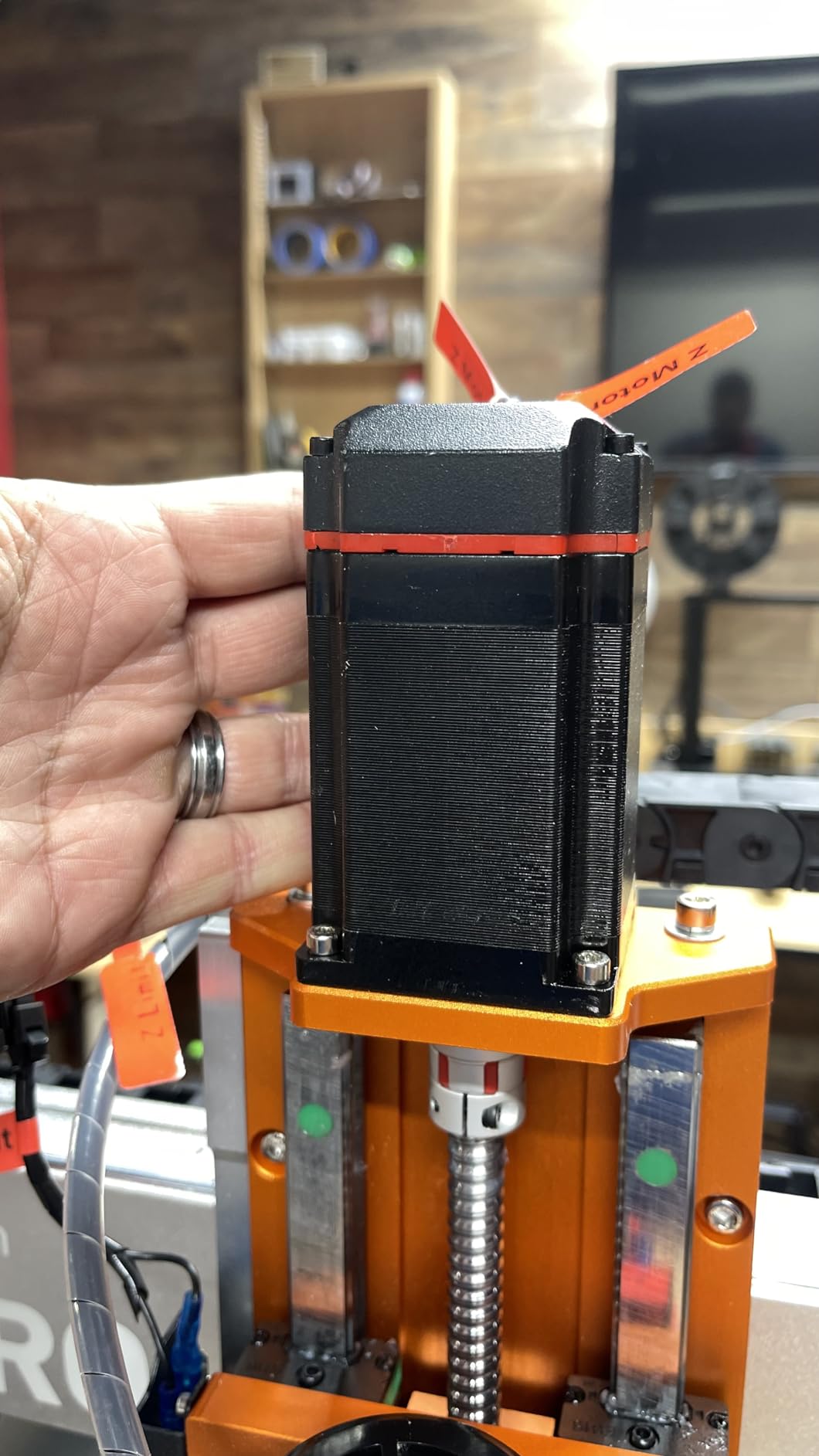

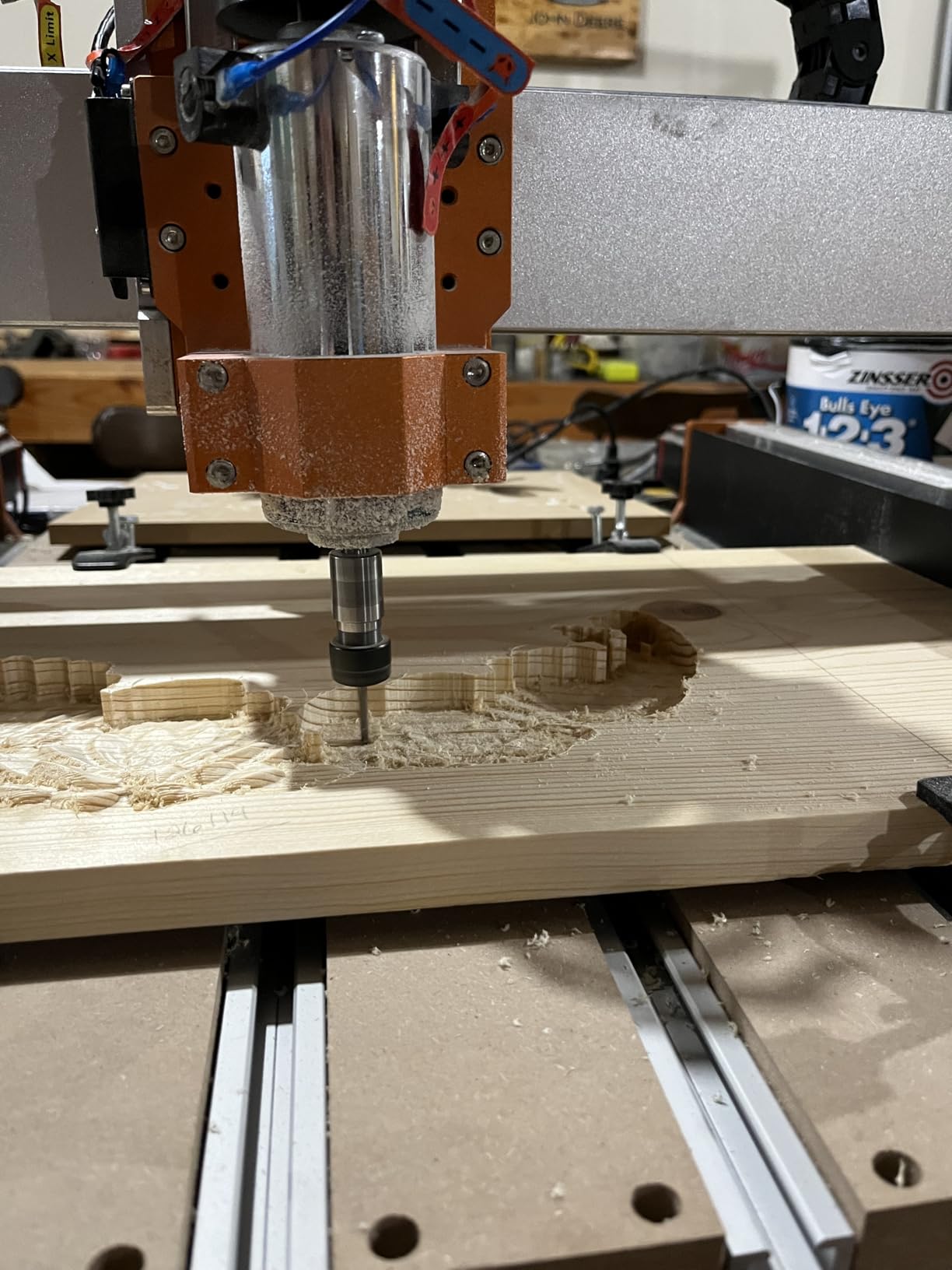

8. FoxAlien XE-PRO – Best for Upgrading Over Time
FoxAlien CNC Router Machine XE-PRO with Ball Screws and 400W Spindle
400W spindle
1204 ball screws on all axes
Four NEMA 23 closed-loop steppers
Upgradable to XY linear rails
Pros
- Ball screws on all axes cut backlash and improve finish
- Returns to the same zero even after a simulated power cut
- Three spindle clamp sizes accept larger spindles
- Offline controller removes the need for a tethered PC
- Can be extended to a larger frame
Cons
- No design or CAM software included
- 400W spindle is weak and slow
- Speed is set by a physical dial
- Minority of units had early component failures
The XE-PRO is the machine to buy if you intend to grow into aluminum rather than outgrow a machine. It ships with 1204 ball screws on X, Y and Z plus dual linear rails on the Z axis, and it accepts an XY linear rail kit that converts the frame to industrial-class rigidity later.
Repeatability is the headline from owners. People homed the machine repeatedly, found it returned to an identical zero, and one simulated a power cut and got the same result. Another ran it 36 hours straight without issue. For repeat aluminum parts, that consistency is what actually protects your tolerances.
The four NEMA 23 closed-loop steppers reach 5000 mm/min and are described as running 2.5 times faster than open-loop versions with less noise and no skipped steps. Three spindle clamp sizes at 52mm, 65mm and 69mm mean you can move from the included 400W spindle to a bigger unit without replacing the Z assembly.
Assembly takes 25 to 30 minutes from pre-assembled main parts, and the working area is 400 x 400 mm extendable to a larger format with an extension kit. Owners often buy this one intending to upgrade and keep it for years.
What the upgrade path really includes
This is the rare entry machine where the growth plan is documented rather than improvised. Linear rails on XY, larger spindle mounts and closed-loop steppers are all designed-in destinations, so you are not relying on the frame tolerating parts nobody tested.
That changes the economics. Instead of buying a bigger machine in two years, you can spend on the axis hardware that actually limits aluminum work, which is usually the spindle and the rails.
Things to verify early
No design or CAM software is included, so you will buy VCarve and a G-code sender separately. The included 400W spindle is weak and slow for aluminum, and speed is controlled by a physical potentiometer rather than through software, which is annoying once you are running feeds and speeds.
A minority of units had component failures within the first 30 minutes, including a Y-axis rod backing out of its adapter and an X-axis ball bearing carrier separating. Check both axes carefully before your first job.
9. AnoleX 4030-Evo Ultra 2 – Best for Precision Specs
AnoleX CNC Router Machine 4030-Evo Ultra 2, All-Metal XYZ Axis Dual Steel Linear Guides & Ball Screws with 800W Trim Router for Metal Aluminum Brass Wood Acrylic PCB
800W trim router to 24000 RPM
HGH-15 rails and 1204 ball screws on all axes
Plus or minus 0.005 mm repeatability
38 kg machine weight
Pros
- Handles 1/4 inch endmills through aluminum without losing steps
- Generous Z clearance for a machine its size
- Heavy build reads as professional grade on a tabletop
- Quiet 32-bit controller with good fit and finish
- Support troubleshoots by email and sends parts
Cons
- Collet taper is slightly out of true on some units
- Emergency stop button has broken more than once
- Limit switches are not detected individually
- Web interface has noticeable lag
This machine publishes the most impressive numbers in the group: plus or minus 0.005 mm repeatability and plus or minus 0.02 mm accuracy on 6061 aluminum. With only 35 reviews the sample is thin, but the hardware sentiment is strongly positive, and several buyers compare it favourably to larger and more expensive machines.
It is also the heaviest machine here at 38 kg, and owners describe the build as professional grade in a tabletop footprint. HGH-15 dual linear rails and 1204 ball screws are fitted on X, Y and Z with dual-bearing ends, which is a genuinely rigid arrangement.
The 800W trim router uses an ER11 collet with six speed settings from 8000 to 24000 RPM. Owners report handling 1/4 inch endmills through aluminum without losing steps, and the generous Z clearance sets it apart from most machines in this class.
The controller is the other differentiator. GRBL 1.3a firmware on an ESP32 supports laser, 4th axis, M07 and M08 coolant, closed-loop steppers and a 3-pin touch probe, and the ESP3D web interface lets you control the machine from a phone or tablet without a USB cable.
Verify the collet before trusting the specs
The single most important check on this machine is eccentricity. Owners report the collet taper being slightly out of true, so a 1/4 inch bit installed past the collet runs at an angle and produces a visibly poor cut in aluminum. Test it before blaming the feeds and speeds.
One owner also measured around 0.0025 inches of spindle runout, which is higher than the published figures imply. On a machine with specs this good, that mismatch is worth knowing about in advance.
Firmware issues to plan for
Limit switches are not detected individually, so the controller does not know which end of an axis it is at, and on some firmware versions homing loses the zero position. The emergency stop button is delicate and has broken more than once.
The WiFi web interface has noticeable lag and would not connect on some Windows setups, so treat Candle over USB as the reliable path. Documentation also omits some setup details, including which COM port to use.

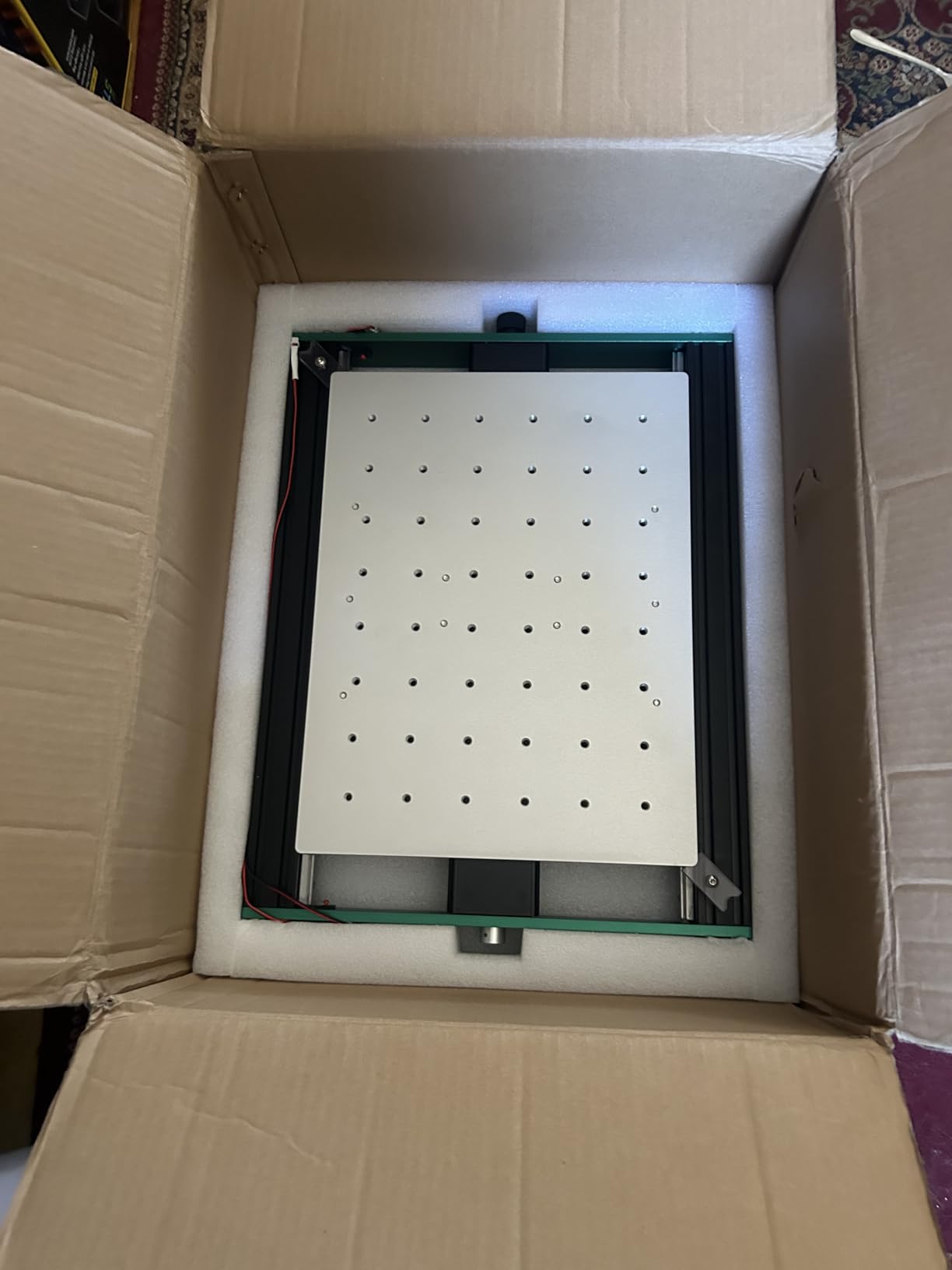

10. AnoleX 3030-Evo Max – Best for a Small Footprint
AnoleX CNC Router Machine 3030-Evo Max, All-Metal XYZ Axis Dual Steel Linear Guides with 800W Trimmer Router, ideal for Cutting Aluminum, Brass, Stainless steel, Wood, Acrylic, MDF, Plastics
800W trim router to 24000 RPM
MGN-15 dual linear guides and T8 lead screws
Upgrade mount for a 1.5kW spindle
GRBL 1.3a on ESP32
Pros
- 800W router cuts aluminum and copper out of the box
- 65mm mount accepts the 1.5kW spindle kit
- Higher torque steppers than the usual Nema 17
- ESP3D web control without a USB cable
- Upgradeable to a 3060 table by swapping the base
Cons
- T8 lead screws are less rigid than the ball screw kit
- Speed still uses a manual dial
- Small 3030 area limits stock size
- Positioned as light-duty home equipment
The 3030-Evo Max is the most compact machine in this roundup and the most explicitly designed for aluminum out of the box. The 800W trim router cuts aluminum and copper as supplied, with six speeds from 8000 to 24000 RPM and an ER11 collet.
Where it earns its keep is upgradeability. The 65mm spindle mount accepts the 1.5kW spindle kit, the steppers can be upgraded to Nema 17 closed-loop units, a 1204 ball screw kit is available, and the base can be swapped for a 3060 table. Few machines at this size document that path as clearly.
The included steppers produce 650 mN.m of torque against roughly 420 mN.m for a standard Nema 17, and that difference is felt on aluminum. Buyers describe the frame as rigid and compact for a light-duty home machine, and the GRBL 1.3a firmware on ESP32 is a step above older controllers.
Accuracy figures are plus or minus 0.01 mm repeatability and plus or minus 0.05 mm cutting accuracy on 6061 aluminum, which is honest for a machine at this level.
When a 3030 bed is the right answer
A 3030 work area suits jewelry, control enclosures, small brackets and camera parts. If your aluminum work is that scale, the compact footprint means you can keep it on a bench rather than dedicating floor space, and the lower moving mass keeps it responsive.
The trade-off is straightforward. If your stock regularly exceeds the bed, you will end up wanting the 3060 table base, which means replacing the base rather than simply extending it.
Where the frame stops short
T8 lead screws are less rigid than the ball screw upgrade available for this frame, so heavy cuts will show more deflection until you fit the kit. Speed adjustment on the 800W router still requires manual dial control rather than software.
Owners are also clear that this is positioned as a light-duty home machine and is not intended for heavy production work. Used as intended, it is a genuinely capable aluminum cutter for its footprint.
What to Look for in a CNC Router for Aluminum
1. Spindle power tiers and what they actually cut
The community treats wattage as the go or no-go number, and it is a reasonable one. Below 400W you are limited to engraving thin sheet and nothing structural. Around 710W to 800W you can profile and pocket plate up to roughly 1/4 inch, drill and tap reliably, and run larger aluminum end mills. At 1.5kW water-cooled and above, you can push deeper slots, heavier finishing passes and thicker stock.
One caution on wattage alone: several of the machines here ship with brushed or trim routers whose useful rpm ceiling is lower than their wattage implies. The 4040-PRO tops out near 9000 rpm, and plenty of aluminum end mills want 12000 rpm or more to cut cleanly. Check both the wattage and the speed range, and check runout, because a strong spindle with 0.01 inch of runout will still produce a wandering cut.
2. Rigidity and the drive system underneath it
Frame rigidity matters more than spindle wattage for surface finish, and the failure mode is predictable: the cutter pushes the gantry sideways, the gantry deflects, and your part comes out wrong. Cast iron and welded steel frames resist this best, and aluminium extrusion resists it worst. Within extrusion frames, dual linear rails on the Z axis matter far more than the extrusion brand.
Drivetrain choice follows the same logic. Ball screws give the lowest backlash and the best repeatability, which is what protects tolerances across repeated parts. Lead screws are adequate for light work and cheaper, but they wear and need tramming more often. Rack and pinion drives the fastest over long travel and tolerate dirt better, at the cost of some backlash. Closed-loop steppers help because they detect and correct lost steps rather than quietly skipping them.
3. Router or CNC mill for aluminum
A router is the right tool for aluminum in most cases. Routers give a large work area and a high-speed spindle, which is exactly what you want for large sheets of softer non-ferrous metal, 2.5D profiling and pocketing, drilling and tapping. Aluminum is the material where the router and mill distinction matters least.
A mill earns its place when you move to steel, titanium, hardened aluminium or heavy 3D removal, where maximum rigidity and torque outweigh work area. If your target is aluminum plate and sheet, spending the same budget on a larger rigid router beats buying a small mill.
4. Single-flute, 2-flute or 3-flute aluminum end mills
Flute count is the single most consequential tooling decision for aluminum, and no competitor on this topic covers it properly. A single-flute cutter gives each tooth maximum chip load, evacuates chips well and takes a fine finish on shallow passes, but it deflects more easily on a lighter machine. A 2-flute cutter is the general-purpose choice and the best balance for most aluminum work, provided chips have somewhere to go. A 3-flute spreads the load across more teeth for lower chip load and a better finish, at the cost of more complex chip evacuation.
The failure mode is the same in all three: chips recutting instead of leaving. If your finish is torn or your cutter dulls quickly, the answer is usually evacuation, not more spindle power.
5. Workholding and chip evacuation
Aluminum is light, springy and prone to lifting. A vacuum table works well on flat sheet if the plate is flat and the table is sealed, but it cannot hold a rough or warped plate. Low-profile clamps and T-track nuts give more reliable holding for plate work, at the cost of needing somewhere to put the clamps. A spoilboard is for wood, not aluminum: it will gum up with chips and it does not stop a plate moving.
On chips, keep the bed clean between jobs and never let a layer build up on the way or the spoilboard. Use an air blast or brush on the tool, and consider a fog of coolant or MQL for 2-flute cutters, which otherwise tend to recut their own chips.
6. Feeds, speeds and a sane starting point
Feed rate is what most people get wrong when cutting aluminum. Start conservatively on feed and increase chip load per tooth before you increase spindle speed. A 3 or 4 flute aluminum end mill running 10000 to 18000 RPM with a chip load of about 0.02 to 0.04 mm per tooth is a reasonable starting point on a desktop machine. For finishing passes, climb milling at reduced depth of cut gives a cleaner surface than conventional milling.
Trochoidal milling, where the tool follows a circular path inside the slot, keeps chip thickness consistent and is the standard way to extend tool life in aluminum. If a machine feels like it is struggling, adding a finishing pass at 30 percent of the roughing feed often fixes the finish faster than anything else.
7. Controller and CAM software
Most machines here run open-source GRBL, which is a genuine strength: it is supported by Candle, UGS, gSender, CNCjs and a long list of senders, on Windows, Linux and Mac. Newer GRBL 1.3a firmware on ESP32 controllers adds coolant, 4th axis and touch probe support that older boards simply do not have.
A few practical warnings from owner reports. gSender can default to grblHAL and halt a job unless you switch it to grbl, some open-source senders hit status-pin compatibility problems on certain firmware, and limit switches that are not individually detected make homing less predictable. Budget an evening to sort this out before your first aluminum job rather than during it.
If your shop is also cutting other materials, our guide to aluminum gear choices for the workshop covers the lighter hardware side of the same material.
Frequently Asked Questions
What is the best CNC cutting machine for aluminium?
For aluminium, the best value in a desktop machine is the FoxAlien Masuter 3S, with closed-loop NEMA 23 steppers and a mount ready for a 1.5kW spindle. For sheet work the NYMOLABS NBS-6040 wins on its 610 x 410 mm bed with linear rails and ball screws on every axis. For the tightest measured accuracy the Genmitsu 3030-PROVer Ultra reports plus or minus 0.03 mm. Whichever you pick, confirm a spindle of at least 710W, ball screw or linear rail drives, and a rigid steel or cast iron frame before buying.
Can a CNC router be used to cut aluminium?
Yes. Routers excel at large sheets of soft non-ferrous metal, 2.5D profiling and pocketing, drilling and tapping, which covers most aluminium work including 6061 plate. Only steel, titanium and heavy 3D removal need a CNC mill. The caveat is that the router must be built for metal, meaning a rigid frame and a spindle with real torque. A floppy frame will deflect under cutting load and produce chatter no matter how good the cutter is.
What type of CNC bit is best for cutting aluminum?
A 2-flute aluminium-specific end mill is the best general choice, balancing chip load and rigidity. Single-flute cutters evacuate chips best and finish shallow passes well but deflect more on lighter frames. 3-flute cutters spread load for a smoother finish but need better chip evacuation. Use a 35 or 45 degree helix to lift chips out of the cut, and never run them dry if recutting starts, since MQL or an air blast solves most torn-finish problems.
Do I need a water-cooled spindle for aluminum?
Water cooling matters more the longer you cut. A 400W or 710W trim router handles short aluminum jobs fine, but sustained profiling heat builds quickly in an air-cooled motor and runout climbs as bearings and the collet distort. If your work involves deep slots, thick plate or production quantities, a 1.5kW water-cooled spindle is the step that removes the limit. Several entry frames on this list have a mount designed to accept one as an upgrade.
How do I stop aluminum chips from ruining the spoilboard and the machine?
Skip the spoilboard for metal and hold plate on a vacuum table or with low-profile clamps on T-track nuts, since a spoilboard only collects gummed chips. Clean chips off the way and spoilboard between jobs so they cannot be recut. For 2-flute and 3-flute cutters use a fog of coolant or MQL, and consider a dust shoe or brush to clear chips from the flutes. Also cover the axis limit switches, since fouled switches can halt a job mid-cut.
Conclusion
The best CNC routers for aluminum all share the same three traits: a spindle with real torque, a frame that does not flex, and a drive system without visible backlash. Pick the FoxAlien Masuter 3S if you want the most complete package and plan to add a 1.5kW spindle later. Choose the NYMOLABS NBS-6040 when your work is full sheets rather than small parts.
Pick the Genmitsu 3030-PROVer Ultra when tolerance matters more than bed size, and the 4040-PRO MAX when you want rails on the X axis and a faster router. Whichever machine you settle on in 2026, verify spindle runout before your first cut and clamp your aluminum properly. That one habit does more for your parts than any spec on the listing.
